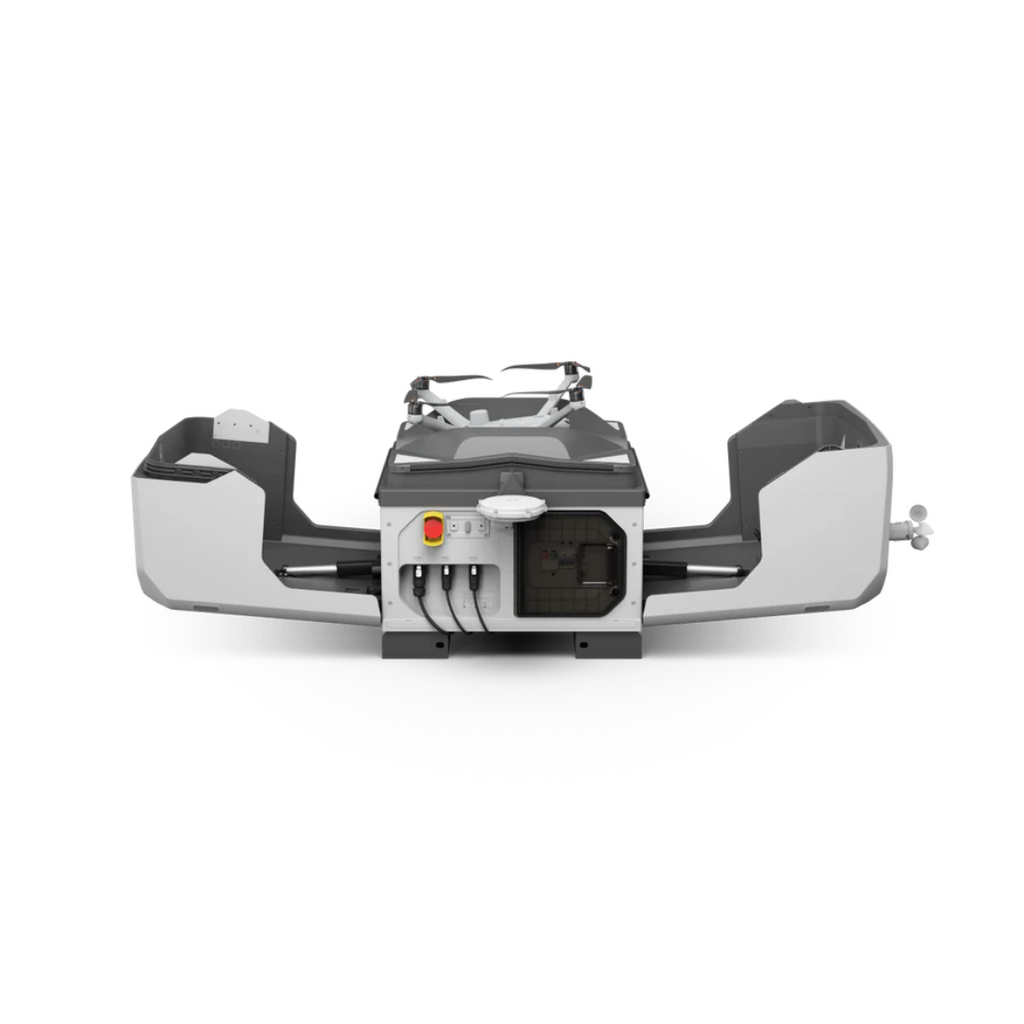

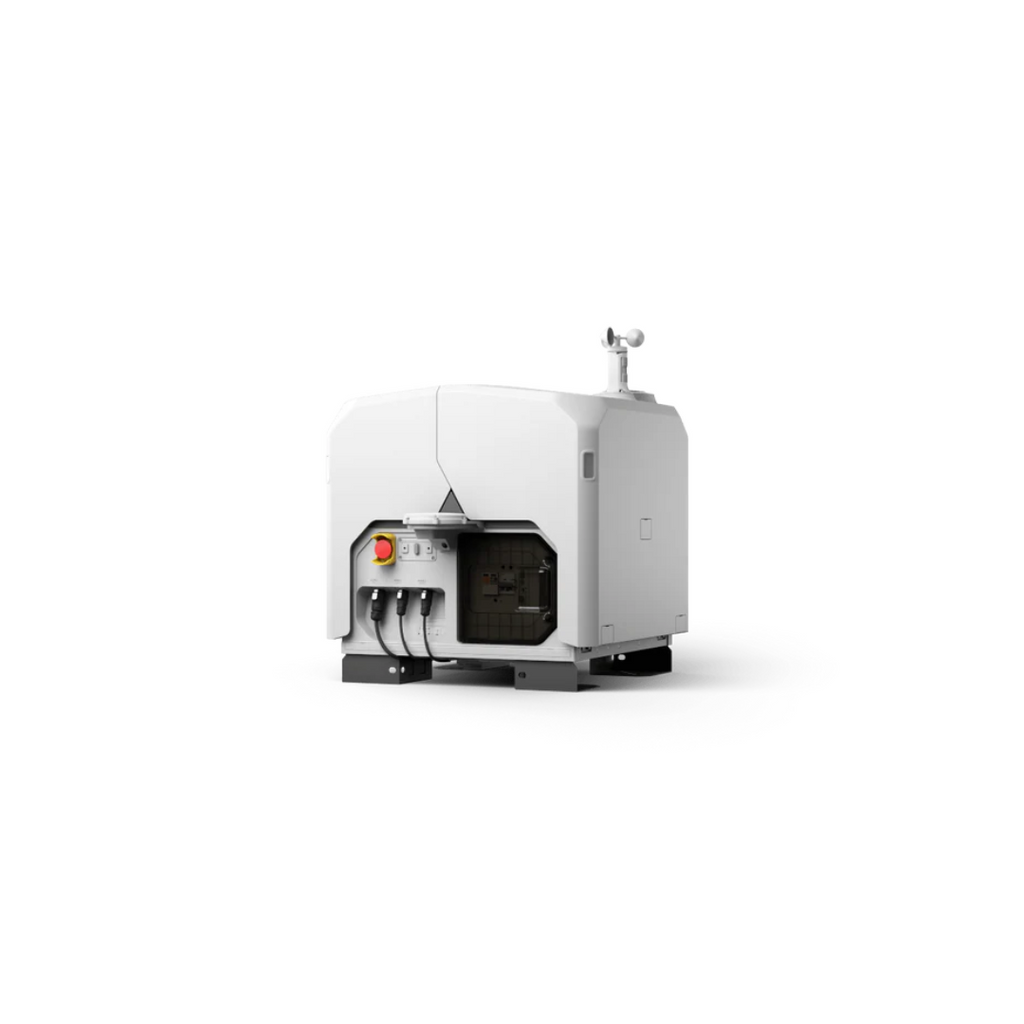

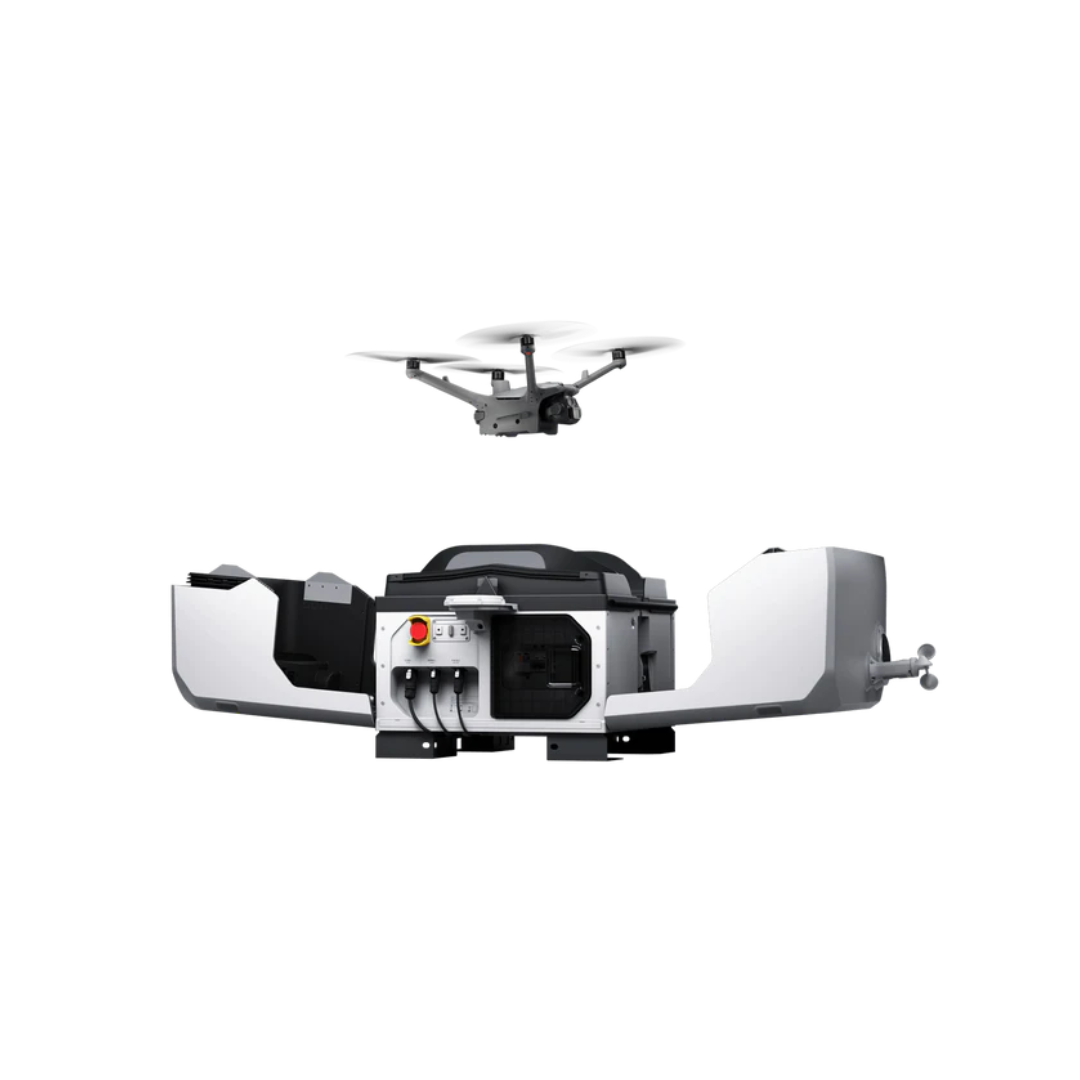

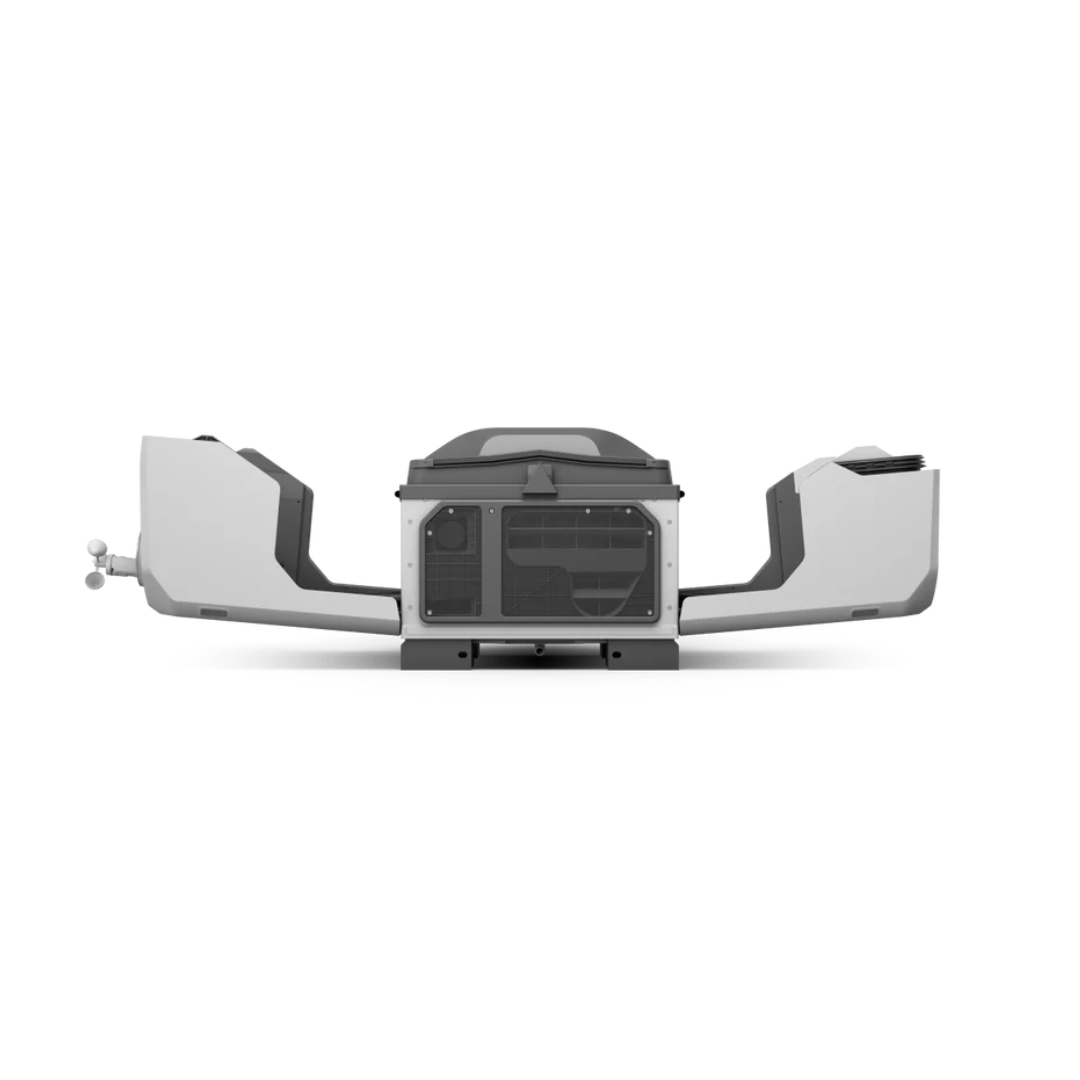

DJI Dock 3 (Flame-Retardant Foam Version)
DJI Dock 3 redefines autonomous drone operations, delivering unmatched efficiency, reliability, and adaptability for enterprise professionals. Designed to support 24/7 remote missions, it integrates seamlessly with the DJI Matrice 4D and DJI Matrice 4TD drones enhancing performance with extended flight times and advanced protection.
Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations, and change detection with AI, and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments. The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance. They can also pair with DJI RC Plus 2 Enterprise for standalone use. With DJI FlightHub 2's intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.
Built Tough for All Conditions
Designed with an IP56-rated dock and IP55-rated drones, the system is built to withstand harsh weather and operate efficiently within temperatures ranging from -30°C to 50°C. Its durable construction supports deployments in challenging outdoor environments.
Mobility and Connectivity
The Dock 3 supports vehicle-mounted operation for in-transit charging and data transfer, perfect for missions requiring mobility. Integration with D-RTK 3 Relay enhances signal strength and extends operational range for reliable communication.
Intelligent Flight Technology
Equipped with obstacle-sensing radar that detects objects as small as 12mm at speeds up to 15m/s, the dock ensures safe navigation. It features onboard relay capabilities for improved signal transmission across rugged terrain and can operate standalone with DJI RC Plus 2 Enterprise for versatile control.
Smart Automation and AI Integration
With DJI FlightHub 2 integration, the dock offers intelligent features such as automatic route planning, object detection, and anomaly alerts. Upcoming support for on-premises deployment and third-party software compatibility further enhances its capabilities.




































In The Box
- 1x DJI Dock 3
- 1x Grounding wire, 0.5m long, installed at the grounding screw on the bottom of the Dock
- 1x Wind speed gauge
- 1x Power Plug (Compatible with Dock 2 plugs)
- 2x Network Plug (Compatible with Dock 2 plugs)
- 6x Power Cable Terminals
- 1x Screwdriver
- Screws
- 1x Dual-head USB-C Cable (For connecting Android device to Dock for deployment)
Specifications
General
Product Name
|
DJI Dock 3
|
Total Weight
|
55 kg (without Aircraft)
|
Dimensions
|
Dock Cover Opened: 1760×745×485 mm (L×W×H) Dock Cover Closed: 640×745×770 mm (L×W×H)
|
Input Voltage
|
100-240 V (AC), 50/60 Hz
|
Input Power
|
Max 800 W
|
Operating Temperature
|
-30° to 50° C (-22° to 122° F)
|
Ingress Protection Rating
|
IP56
|
Number of Drones Accommodated
|
1
|
Max Allowable Landing Wind Speed
|
12 m/s
|
Max Operating Altitude
|
4500 m
|
Receiving Frequency of RTK Base Station Satellite
|
Simultaneously receive:
GPS: L1 C/A, L2, L5
BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
GLONASS: F1, F2
Galileo: E1, E5a, E5b, E6
QZSS: L1, L2, L5
|
Positioning Accuracy of RTK Base Station
|
Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
|
Charging Performance
Output Voltage
|
35 V DC
|
Charging Time
|
27 minutes
The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
|
Video Transmission
Operating Frequency
|
2.400-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz
The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.
|
Antenna
|
Built-in 9 antennas, 2T4R, supports intelligent switching
|
Transmitter Power (EIRP)
|
2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE)
5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)
|
Air Conditioning System
Operating Voltage
|
48 V DC
|
Air Conditioning Type
|
Compressor-based air conditioning
|
Backup Battery
Battery Capacity
|
12 Ah
|
Output Voltage
|
12 V
|
Battery Type
|
Lead-acid battery
|
Battery Life
|
> 4 hours
Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
|
Network Access
Ethernet Access
|
10/100/1000Mbps adaptive Ethernet port
|
4G Access
|
Requires DJI Cellular Dongle 2
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
|
Sensor
Wind Speed Sensor
|
Supported
|
Rainfall Sensor
|
Supported
|
Ambient Temperature Sensor
|
Supported
|
Water Immersion Sensor
|
Supported
|
In-Cabin Temperature Sensor
|
Supported
|
In-Cabin Humidity Sensor
|
Supported
|
Security Camera (External)
Resolution
|
1920×1080
|
Field of View (FOV)
|
151°
|
Auxiliary Light
|
Auxiliary White Light
|
Security Camera (Internal)
Resolution
|
1920×1080
|
FOV
|
151°
|
Auxiliary Light
|
Auxiliary White Light
|
Lightning Protection
AC Power Port
|
20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements
|
Ethernet Port
|
10 kA (Itotal),meets EN/IEC 61643-21 Category C protection level requirements
|
Supported Software
Applications
|
DJI Enterprise app (used with Android phones for deployment and commissioning)
|
Cloud Platform
|
FlightHub 2
FlightHub 2 On-Premises Version
FlightHub 2 FlightHub Sync
DJI Cloud API
|
Expansion Capability
Edge Computing
|
Supports data communication with external switches
|
