DJI Dock

DJISKU: dji-dock-m30t

Request a Quote:

Description

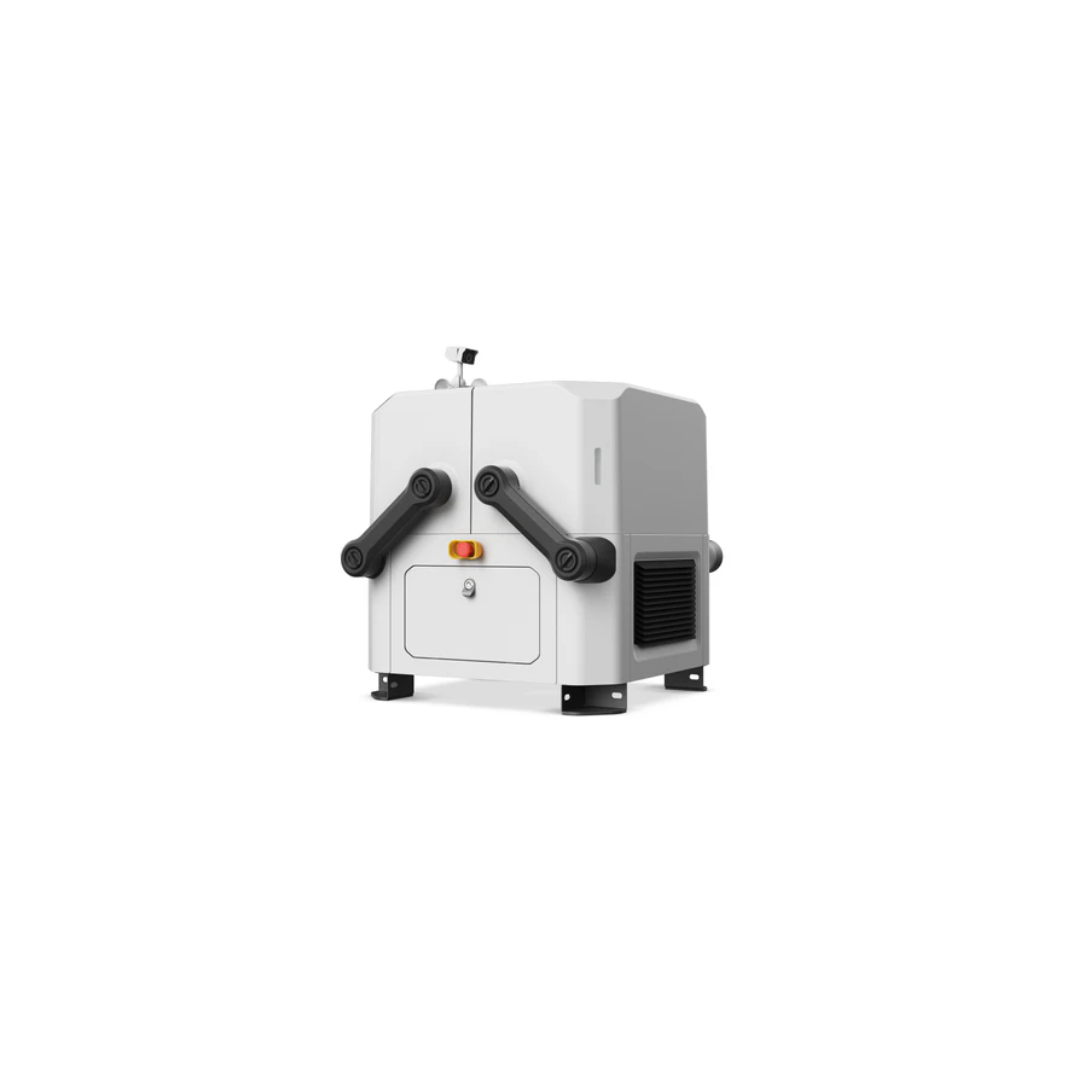

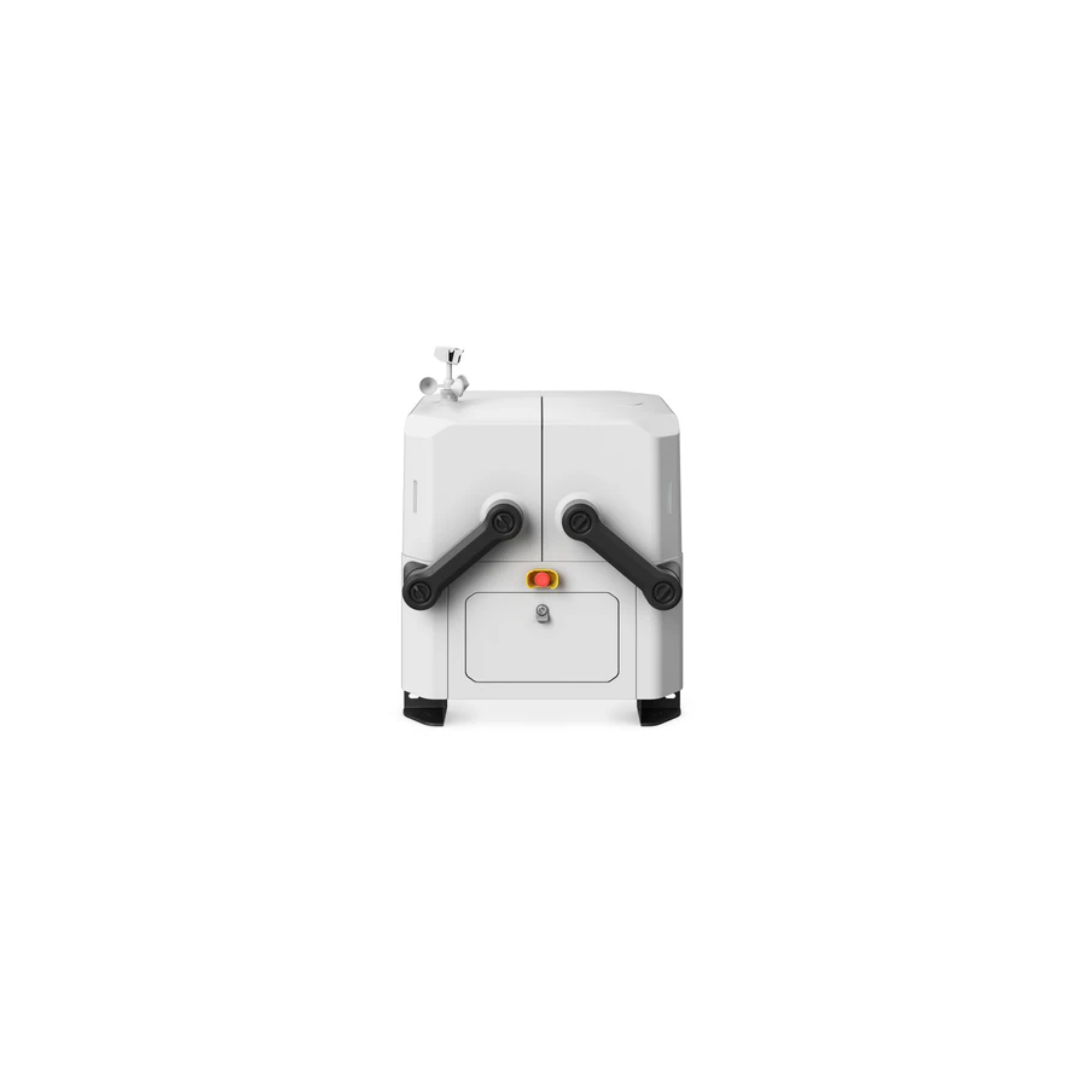

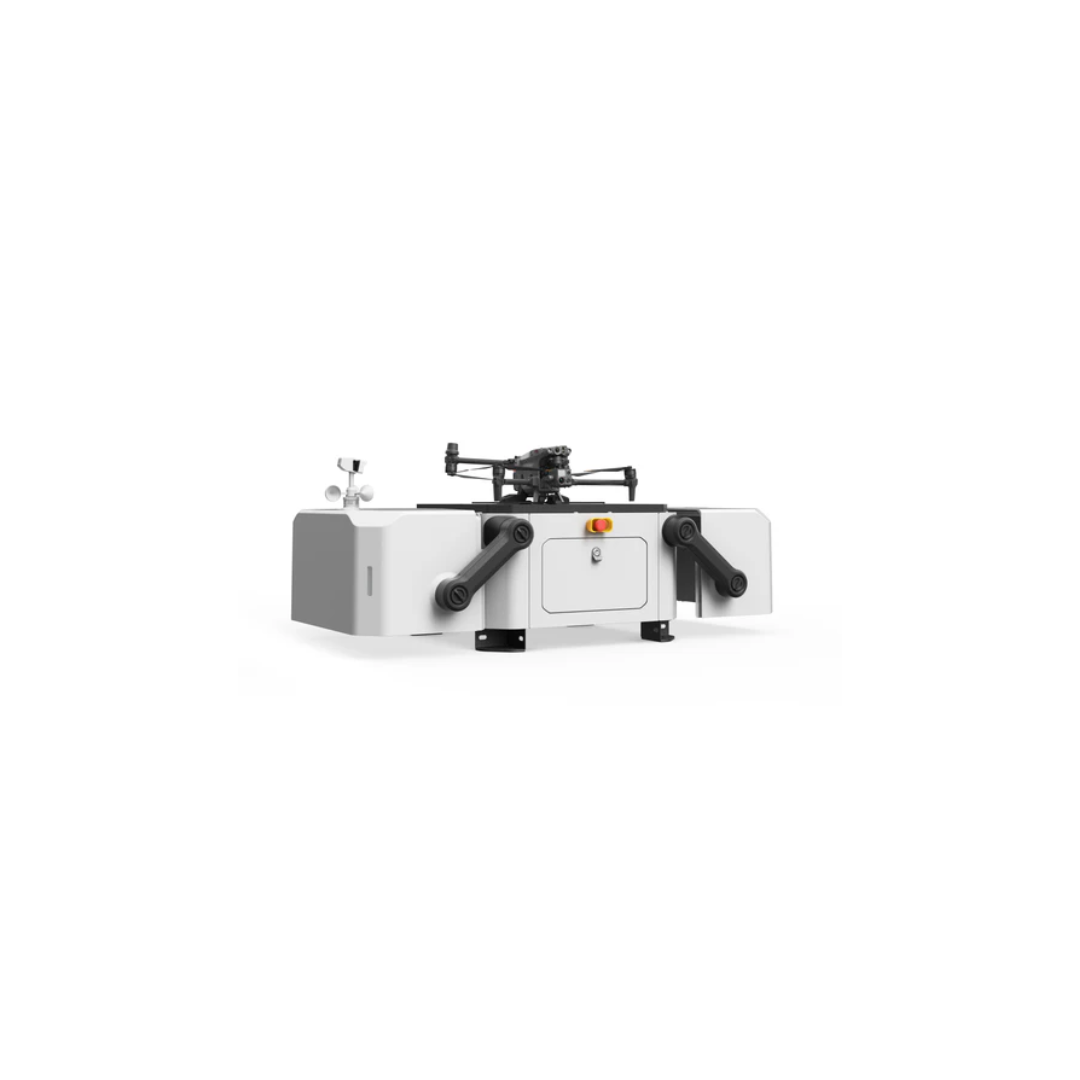

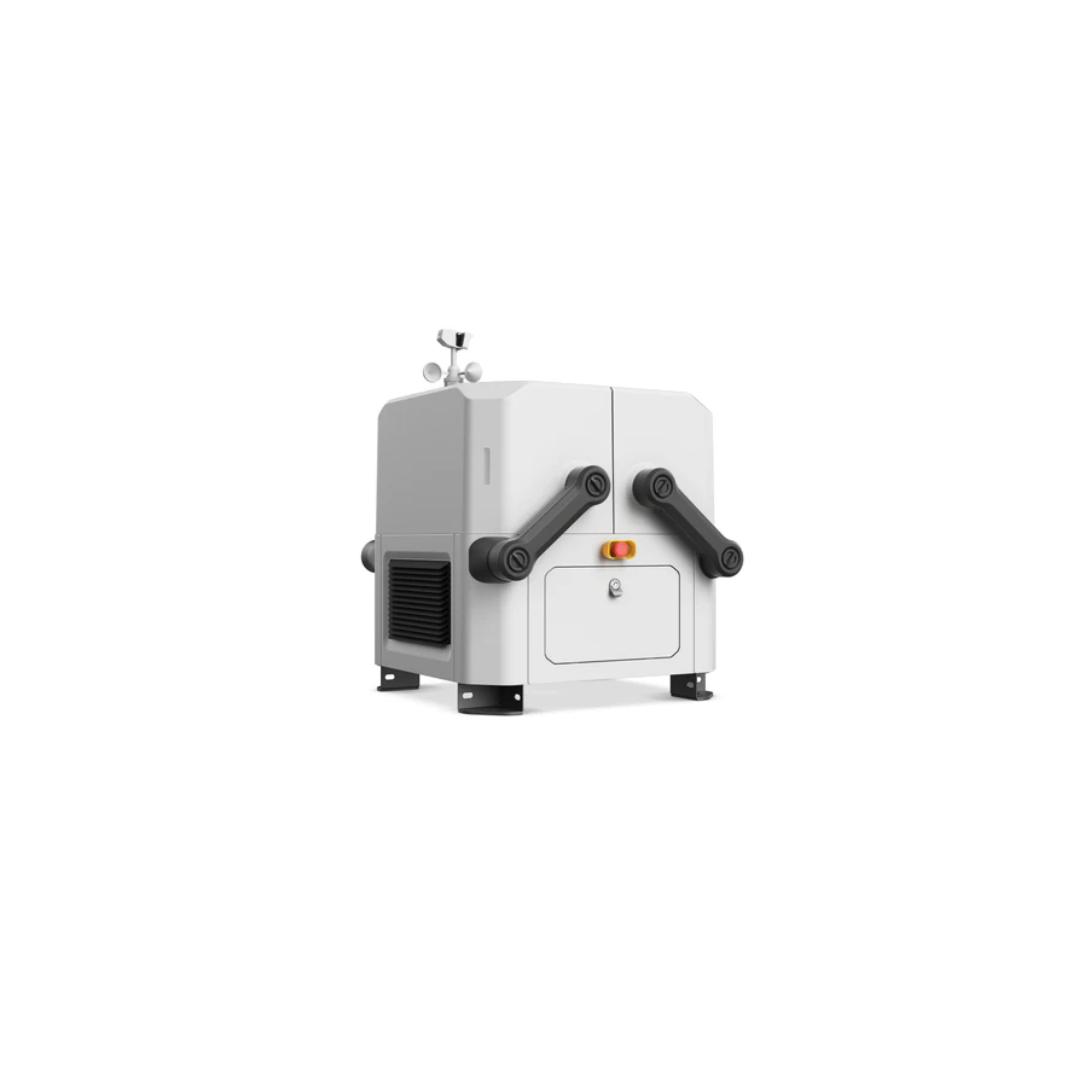

DJI Docks are rugged, reliable, and are built to operate 24/7, day or night, rain or shine. Each DJI Dock houses a Matrice 30 or Matrice 30T where it lands, recharges, takes off, and executes missions programmed in DJI FlightHub 2.

In the Box

  • Dock Body
  • Aircraft*
  • Wind Speed Gauge Module
  • Triangular Key
  • Expansion bolt
  • Sealant
  • Screws & Tools

*Aircraft is with microSD card inserted. The M30 Dock Version and M30T Dock Version are equipped with different cameras. Refer to the actual product purchased. Aircraft batteries are packaged and delivered separately and must be purchased additionally.

Complete Cloud Control

With FlightHub 2, unlock full DJI Dock functionality from the cloud. Schedule missions, create and edit flight routes, and manage data collected.

Fast Charging, Fast Turnaround

Fast charge and take off thanks to TEC air conditioning that cools the drone batteries, enabling charging from 10-90% in just 25 minutes.

Day or Night, Rain or Shine



Simple Setup

DJI Docks weigh less than 100 kg and have a <1 square meter footprint. Setup requires ground fixation, access to power and internet, and quick configuration via the DJI RC Plus remote controller.

DJI FlightHub 2

FlightHub 2 is an all-in-one cloud-based drone operations management platform that helps you achieve comprehensive, real-time situational awareness. Access all the information you need to plan drone missions, supervise your fleet, and manage the data you create, now from a secure cloud-based environment.

2.5D Base Map

Integrate elevation data with satellite maps to bring terrain awareness to your operation planning.

One-Tap Panorama Sync

Create a 360° overview and upload to the cloud with a single tap. Shared panoramas, and the coordinates they were captured from, are placed on your mission's 2.5D Base Map, granting all team members quick aerial awareness.

Cloud Mapping

Generate RGB or infrared orthomosaic maps of areas up to 1.5 km² in a single flight. Orthomosaics are automatically overlaid on your 2.5D Base Map, granting you detailed awareness of your mission environment whenever needed.

Mission Live Streaming

Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution live streaming.

Live Annotations

Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution. It also supports cloud-based route planning, media management and can be used with DJI Dock for remote operations.

Specifications

DJI Docks are built to withstand the elements, so you don't have to. Ingress Protection: IP55

Operating Temperature: -35℃ to 50℃ Surge Protection: 40kA

Backup Battery: 5 Hours

Active Temperature Control: For fast charging and drone safety 6 Months Maintenance Interval
