Description
DJI FlightHub 2 AIO (All-in-One device)
Key features :
- On-premises for enhanced security: Keep all drone data stored locally for full control and compliance with security policies.
- All-in-one device: Combines software and hardware in a compact, lightweight unit for quick deployment and easy use.
- Flexible deployment: Adaptable to multiple environments, from offices to vehicles and server rooms.
- Fast 2D and 3D modelling: Powered by a high-performance GPU and the DJI Terra engine for rapid geospatial visualisation.
- Efficient custom development: Supports tailored workflows and integration with third-party systems.
- Ready out of the box: Pre-installed with FlightHub 2 On-Premises, Cloud Modelling Module, and 4G Enhanced Transmission Software.
DJI FlightHub 2 AIO is designed to simplify and secure enterprise drone operations through an integrated, on-premises setup.
Below, we take a closer look at its key features, showing how this all-in-one system supports efficient, reliable drone management across a range of industries.
Ready out of the box
FlightHub 2 AIO comes pre-installed with the latest FlightHub 2 On-Prem, as well as a local Cloud Modelling Module and 4G Enhanced Transmission Software Module, allowing immediate setup.
Operators can connect directly to DJI Docks or supported drones via a remote controller, with automatic network configuration for both internal and external access.
Fast modelling performance
Powered by a high-performance GPU and the DJI Terra modelling engine, the AIO can quickly process imagery into detailed 2D and 3D models.
In time-critical operations such as emergency response, it can create a 3D model within five minutes after receiving 500 images — delivering rapid situational awareness and updated digital maps on site.
Multi-scenario deployment
The compact and durable design of FlightHub 2 AIO supports multiple deployment options:
-
In-vehicle deployment: Built to withstand transport conditions such as vibration and impact. When paired with DJI Dock 3 or compatible drones, it enables a fully mobile command solution, even without network access — ideal for emergency missions.
-
Server room deployment: Includes multiple network interfaces for stable, 24/7 operation, integrating seamlessly with existing IT systems.
-

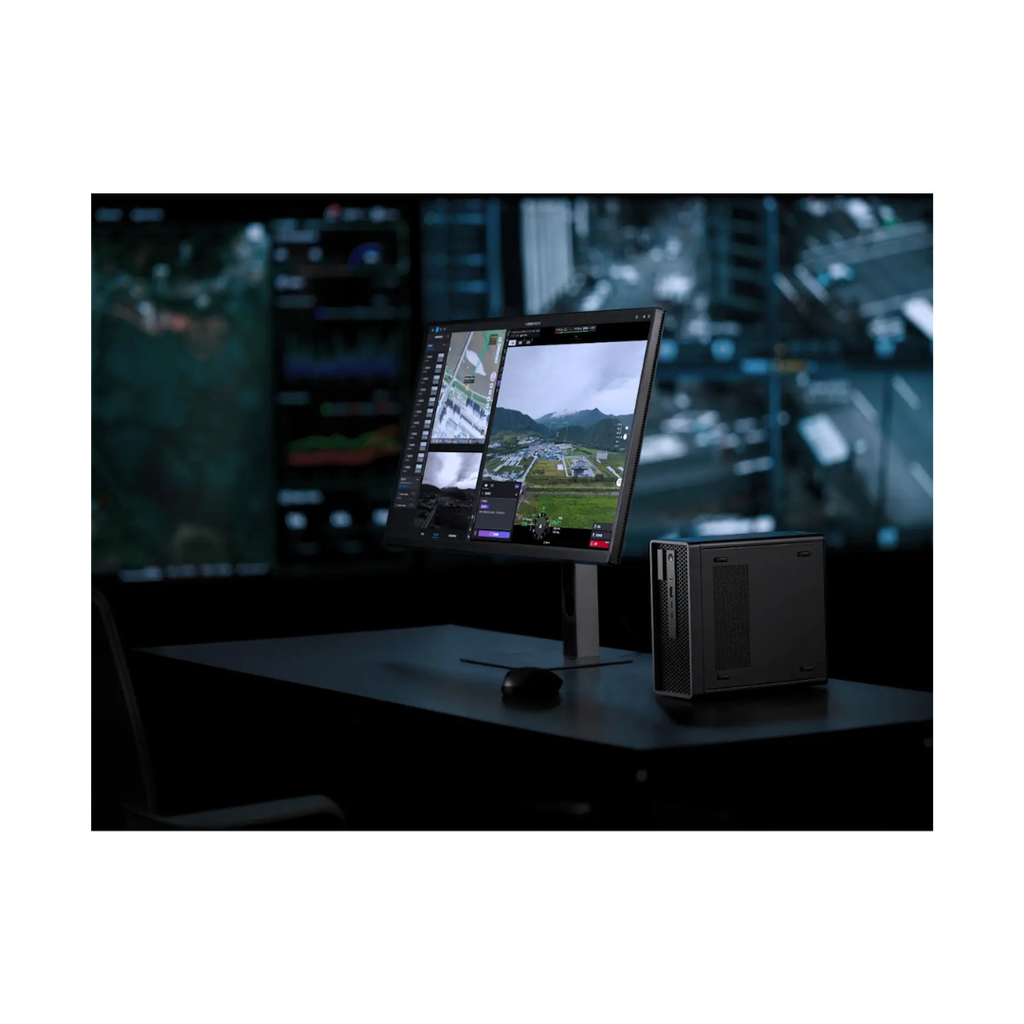

Office deployment: Lightweight (3.008 kg) with low power and noise, making it suitable for office environments or small control centres.
FlightHub 2 features AIO supports
On-premises deployment
FlightHub 2 AIO supports secure, local deployment with features continuously synchronised with the public cloud version of DJI FlightHub 2.
This ensures users always have access to the latest software and hardware capabilities, even in private network environments.
Flexible deployment options
Choose from multiple deployment methods to suit your organisation’s infrastructure:
-
Physical servers: Maximise computing power with simplified system architecture and maintenance.
-
Private cloud: Combine local control with cloud flexibility for efficient resource management.
-
Public cloud: Operate as a SaaS solution without the need for server rooms or maintenance.
Modular functionality
The AIO supports modular expansion for enhanced performance and connectivity:
-
Local Cloud Modelling Module: Enables 2D and 3D reconstruction on local servers using the DJI Terra engine and GPU acceleration.
-
4G Enhanced Transmission Software Module: Works with the DJI Cellular Dongle 2 to provide stable, secure data transmission through private 4G APN links.
Custom development and integration
FlightHub 2 AIO makes it easy to build and adapt your own drone management platform.
Modular components such as the Flight Route Editor, Virtual Cockpit, and Flight Records can be integrated directly into your organisation’s software, enabling tailored workflows and efficient post-flight analysis.
Open developer interfaces
Developers can access RESTful OpenAPI tools for smooth integration with enterprise systems and reduce development costs.
Single Sign-On (SSO) support enables unified authentication, allowing users to move between systems with one secure login.
Specifications
|
Weight |
Main unit: 3.008 kg Power supply: 1.05 kg |
|
Dimensions |
223 × 87 × 202 mm (L × W × H) |
|
Software system |
Pre-installed with DJI FlightHub 2 On-Premises |
AIO hardware
|
Processor |
Intel® Core™ Ultra 7 Processor 265 |
|
Memory |
64 GB |
|
Storage |
3 × 2TB SSDs (1 for system, 2 for data with RAID 1 mirroring) |
|
Graphics card |
NVIDIA RTX™ 2000 Ada |
|
Front I/O |
USB-A: 1 × USB 3.2 Gen 2 (10 Gbps, 4.5 W)USB-C: 2 × USB 3.2 Gen 2 (20 Gbps, 15 W)Audio: 1 × Combo audio/mic jack (3.5 mm) USB throughput may vary; USB-C supports Display output. |
|
Rear I/O |
USB-A: 4 × USB 3.2 Gen 2 (10 Gbps, 4.5 W)DisplayPort: 3 × DP 1.4Ethernet: 1 × 1 GbE (RJ45) Rear USB Port 4 supports smart power on. |
|
Onboard Ethernet |
Controller: Intel® Ethernet Connection I219-LMPort: 1 × RJ45Speed: 10/100/1000 Mbps adaptiveFunctions: PXE, ASF, WOL, Jumbo Frames, TeamingManagement: Intel® AMT 16.x |
|
Expansion Ethernet |
Wired: 4 × 10/100/1000 Mbps (RJ45)Wireless: IEEE 802.11 be / a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax |
AIO power
|
Rated power |
330 W |
|
Operating voltage range |
100–240 V |
|
Rated voltage range |
AC 90–264 V |
|
Rated input current |
4.5 A |
AIO operating environment
|
Operating temperature |
Recommended: 10°–35°C (50°–95°F) Maximum: -33°–63°C (-27.4°–145.4°F), up to 4 hours |
|
Storage temperature |
In carton: -40°–60°C (-40°–140°F) Without carton: -10°–60°C (14°–140°F) |
|
Operating humidity |
10%–90% |
|
Vibration |
Package: 1.04 Grms, 2–200 Hz, 15 min/axis Operating: 0.27 Grms, 5–500 Hz, 30 min/axisNon-operating: 1.04 Grms, 2–200 Hz, 15 min/face |
