DJI O4 Ground Station
Estimated Arrival: October 2026

DJI O4 Ground Station is the long-range drone transmission solution built for DJI Dock 3 programs that operate where networks don't. Automatic multi-band selection and sub-2G drone transmission cut through interference to keep video feeds stable at range. Gateway Mode delivers real-time drone video transmission and remote control via FlightHub 2, including Signal Map for smarter deployment and Virtual Cockpit for agile in-flight control. Switch to Relay Mode for offline relay reach into valleys and signal-blocked corridors. IP67-rated, solar-powered ground station ready, and built for unattended operations around the clock.

• Long-Range Drone Transmission, Up to 40 km with DJI Matrice 400

• Automatic Multi-Band Selection, Interference-Resistant Signal

• Gateway Mode, Real-Time Video, and Remote Control via FlightHub 2

• Relay Mode, Offline Relay Reach Beyond the Network

• IP67 Rated, Built for Extreme Conditions

• Solar-Powered Ground Station Ready, Off-Grid Deployment Without Compromise

The DJI O4 Ground Station is a universal video transmission base station designed for DJI OcuSync 4 enterprise drone systems. Built to support both Network Base Station and Relay Station modes, it helps extend reliable video transmission access for dock-based drones, manually flown drones, and remote enterprise operations.

Designed for use in urban, mountainous, remote, and signal-challenged environments, the O4 Ground Station provides a powerful communication link between drones, docks, controllers, and DJI FlightHub 2. Whether supporting DJI Dock 3 deployments or manually piloted enterprise missions, it gives operators greater flexibility, broader coverage, and more reliable connectivity in demanding environments.

With support for multi-frequency transmission, 4G access, third-party device integration, and low-power standby, the DJI O4 Ground Station is a professional solution for teams that need dependable video transmission infrastructure in the field.

Built for Extended Enterprise Drone Coverage

The DJI O4 Ground Station supports automatic switching across multiple frequency bands, including sub-2G, 2.4 GHz, 5.2 GHz, and 5.8 GHz. This allows it to maintain strong transmission performance across different environments and operational conditions, with a maximum transmission range of up to 40 km.

When used with DJI Dock 3, the O4 Ground Station can significantly extend the single-station coverage radius, helping enterprise teams expand operational reach for remote inspections, public safety missions, security patrols, site monitoring, and emergency response.

Network Base Station & Relay Station Modes

The DJI O4 Ground Station supports two key operating modes: Network Base Station Mode and Relay Station Mode.

In Network Base Station Mode, the ground station connects to DJI FlightHub 2 through Ethernet or the DJI Enhanced Video Transmission Module. This enables broader coverage and allows pilots to control drones through FlightHub 2’s virtual cockpit feature within the ground station’s coverage area.

In Relay Station Mode, the O4 Ground Station can be deployed at an elevated location to extend video transmission in areas with no network coverage or severe signal blockage. This is ideal for mountainous terrain, obstructed environments, remote worksites, and areas where direct transmission is limited.

Designed for Harsh Environments

Built for long-term outdoor deployment, the DJI O4 Ground Station features an IP67 protection rating and operates in temperatures from -40°C to 55°C. This makes it suitable for year-round enterprise drone operations in challenging field conditions.

The system also includes a smart low-power mode that automatically enters sleep mode when no aircraft is connected, reducing standby power consumption to approximately 7 watts. For off-grid deployments, it can be connected to DJI Power solar supply solutions or other photovoltaic power systems.

Open Integration for Advanced Workflows

The DJI O4 Ground Station is designed to support more than drone video transmission. It can integrate with standard network cameras, support ESDK and Cloud API workflows, and connect to third-party ADS-B or Remote ID receivers through MQTT protocol.

This open ecosystem makes it a flexible infrastructure component for advanced drone operations, situational awareness systems, remote monitoring, and integrated command centre workflows.

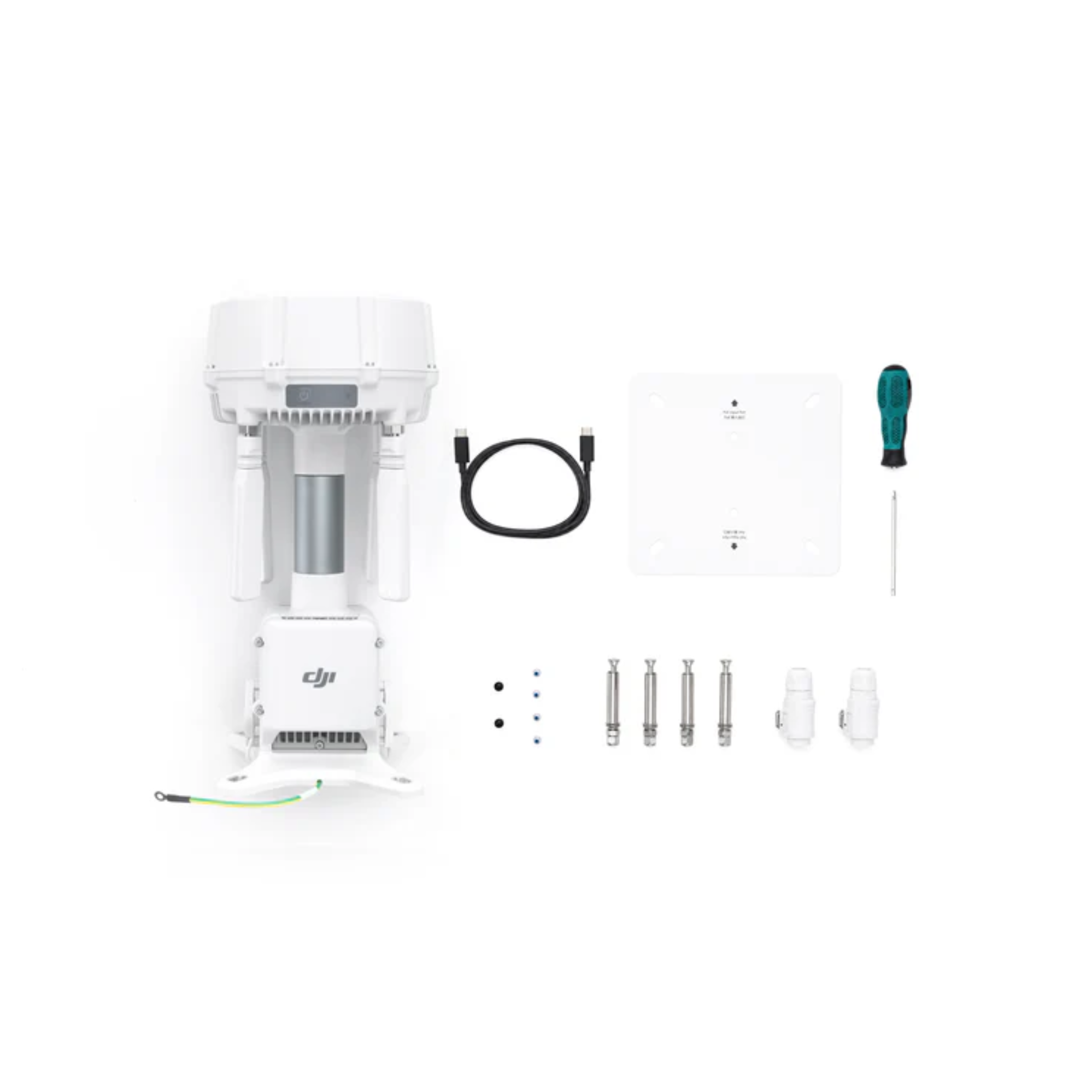

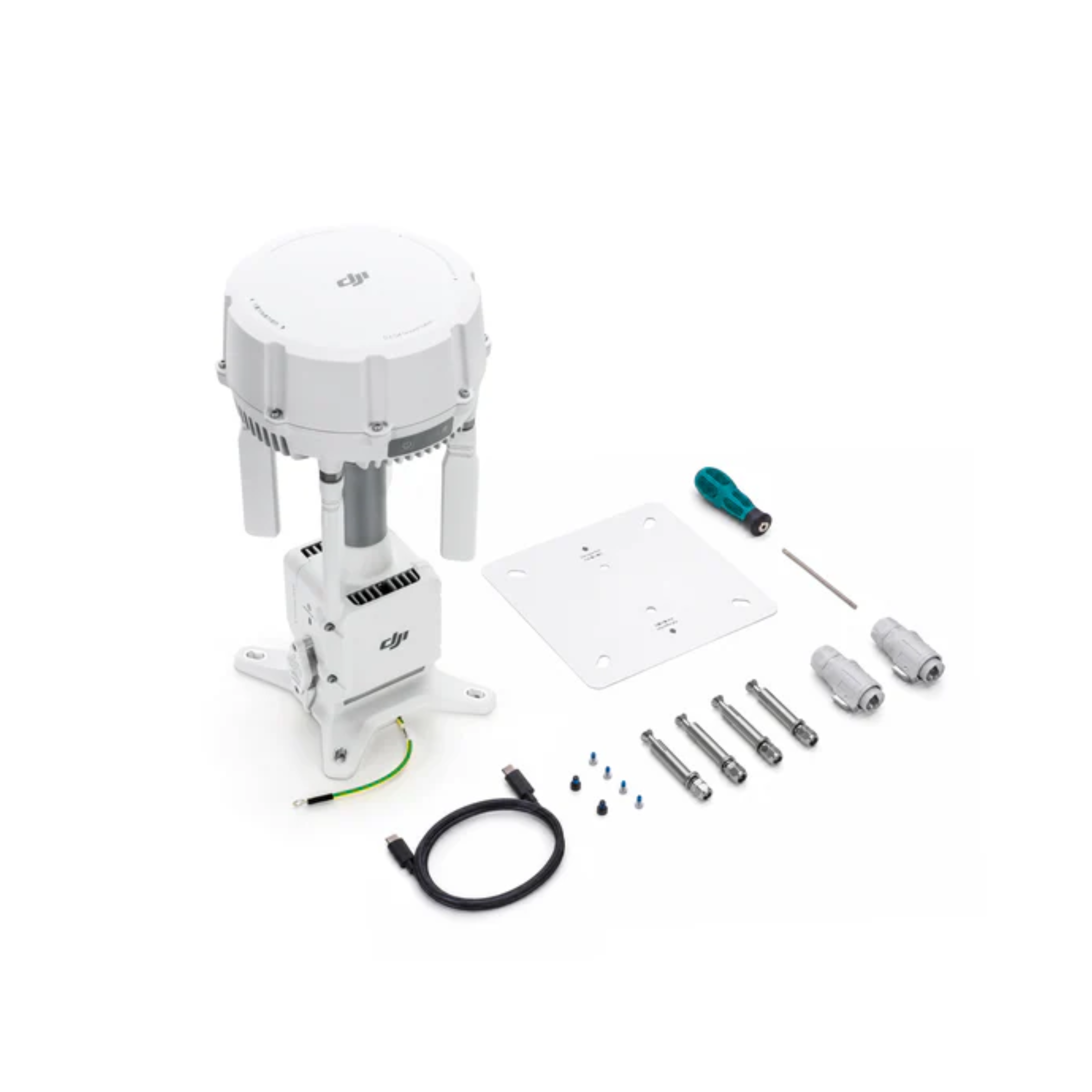

In The Box

• 1x DJI O4 Ground Station

• 1x USB-C to USB-C Cable
• 2x Ethernet Connector
• 4x Expansion Bolts
• 1x Installation Card
• 1x Screws and Tools

Specifications

Transmission & RF Performance

Antenna System

12-antenna omnidirectional array with horizontal and vertical polarization delivers full-direction, high-gain coverage for stable signal capture in all aircraft orientations.

Frequency Bands

Automatic multi-band selection across sub-2G, 2.4 GHz, 5.2 GHz, 5.8 GHz, and additional bands to reduce interference and maintain stable connectivity.

Range Performance

Supports up to 40 km transmission range when paired with DJI Matrice 400 and up to 30 km coverage in Gateway Mode.

RF Capability

High-output RF unit improves signal penetration in dense urban and obstructed environments, with enhanced signal-to-noise ratio for stronger reception and stability.

Positioning & Navigation

GNSS / RTK System

5-system, 19-frequency GNSS with integrated RTK module enables rapid satellite acquisition and centimeter-level positioning accuracy, even in challenging environments such as urban canyons and dense vegetation.

Operating Modes

Gateway Mode

Direct cloud connectivity via Ethernet or DJI Cellular Dongle 2 with integration to DJI FlightHub 2. Enables Virtual Cockpit control, signal mapping, and extended deployment flexibility.

Relay Mode

Supports elevated deployment to extend transmission in obstructed or offline environments, with multi-device rotation for improved operational efficiency.

Durability & Environmental Resistance

Protection Rating

IP67-rated protection against dust and water ingress for reliable outdoor deployment.

Operating Temperature

Designed for extreme environments from -40°C to 55°C (-40°F to 131°F).

Lightning Protection

Complies with EN/IEC 61643-21 Category C standard for enhanced protection in high-exposure installations.

Power & Efficiency

Smart Power Management

Smart low-power mode reduces standby consumption to approximately 7W when no aircraft is connected.

Power Options

Supports integration with solar and photovoltaic systems for long-term off-grid operation.

System Reliability

Fanless passive cooling and self-recovery functions enable automatic restart after outages or software anomalies, reducing maintenance requirements.

System Integration

Camera Support

Supports up to 4 IP cameras with ONVIF and GB/T 28181 protocol compatibility, including PTZ control and centralized monitoring.

Open Ecosystem

MQTT-based ESDK 2.0 and Cloud API enable third-party integrations, including Remote ID and ADS-B receivers for enhanced airspace awareness.

Supported Aircraft & Systems

Gateway Mode

• DJI Dock 3

Relay Mode

• DJI Matrice 400
• DJI Matrice 4E
• DJI Matrice 4T
• DJI Matrice 4D (DJI RC Plus 2 Enterprise)
• DJI Matrice 4TD (DJI RC Plus 2 Enterprise)
• DJI FlyCart 100
