Description

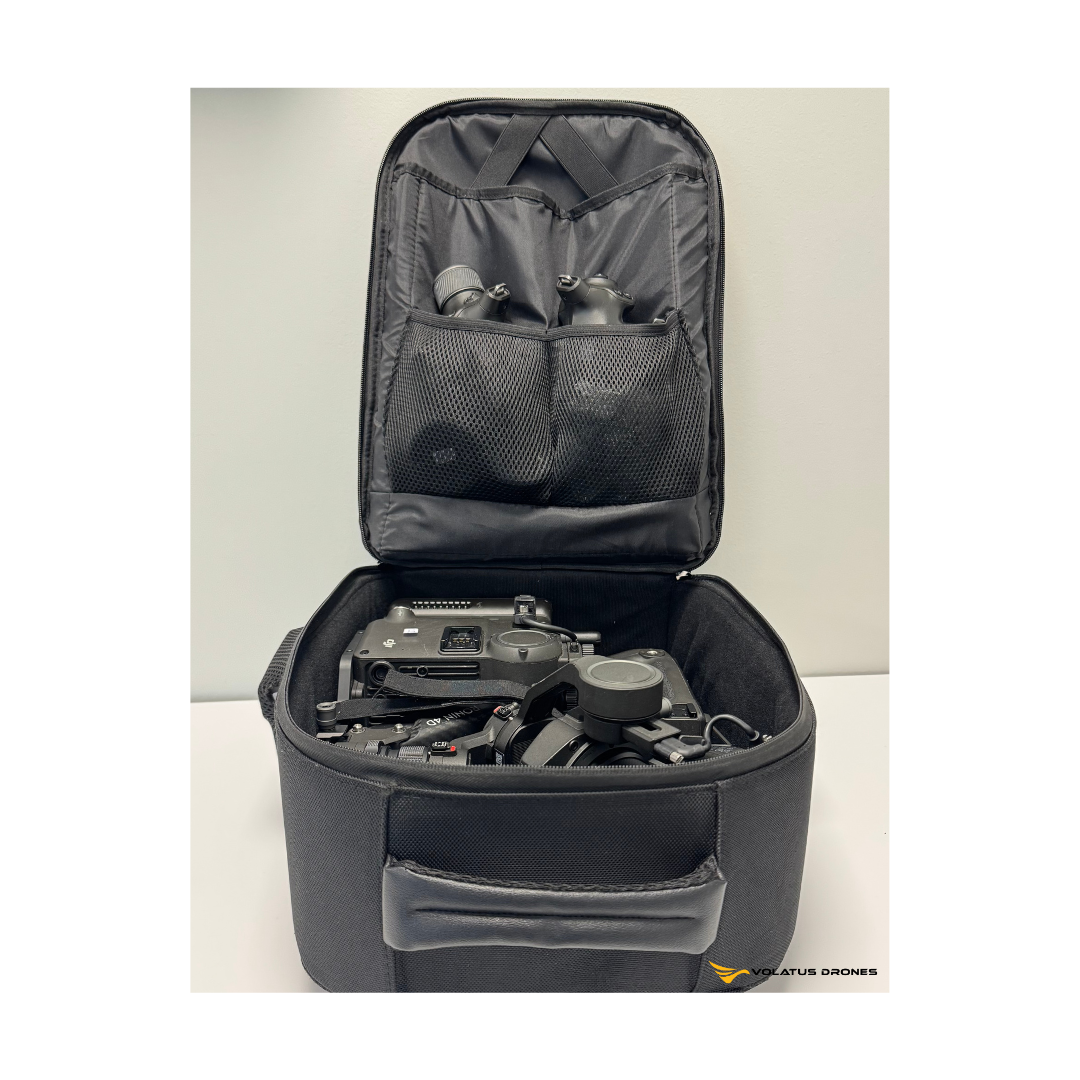

DJI Ronin 4D - Certified Pre-Owned
Item: #9919
Certified Pre-Owned: This unit has gone through a rigorous 60-point inspection and has been certified to be in full working condition. All Certified Pre-Owned units are FINAL SALE.
Includes
- Ronin 4D 6K x1
- Zenmuse X9-6K x1
- Main Body x1
- Lidar Range Finder x1
- DL Mount x1
- Left Hand Grip x1
- Right Hand Grip x1
- Top Handle x1
- Hight-Bright Main Monitor x1
- Pro SSD 1TB x1
- Pro SSD Mount x1
- 50 MM Lens x1
- TB50 Battery Mount x1
- Power Adapter x1
- Base Plate x1
- Gimbal Base Caps x3
- TB50 Intelligent Battery x1
- Lidar Range Finder/Focus Motor Cable x1
- AC Power Cable x1
- WB37 Intelligent Battery x1
- WB37 Charging Hub x1
- Hight Brightness Monitor x1
- Ronin 4D Transmitter x1
- FPV Antenna x10
Take a Closer Look
Full-frame 8K/60fps & 4K/120fps
Zenmuse X9 supports internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video, [1] and up to 8K/60fps and 4K/120fps full-frame video recording. It also supports the ACES workflow.
Dual-native ISO 800/4000 [2]
X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000, while X9-6K supports EI 800/5000, allowing it to capture footage with exquisite detail and minimal noise.
Built-In 9-Stop Physical ND Filters
X9 has 9-stop built-in physical ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to a motorized internal system.
DL/E/L/PL/M Interchangeable Lens Mount
X9 supports DJI's proprietary DL mount, as well as Leica L, Leica M, Sony E, ARRI PL, and more. [3] Lenses compatible with these mounts can also be used with X9. [4]
Autofocus on Manual Lenses
With the LiDAR focusing system and focus motor, autofocus is available even on manual lenses. [4] In Automated Manual Focus mode, [5] the focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point.
4-Axis Active Stabilization on Par with a Dolly
The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, stable footage effortlessly.
Specifications
General
-
Main Body Dimensions (length×width×height)
-
235×115×160 mm
-
Overall Dimensions (length×width×height)
-
309×290×277 mm [1]
-
Gimbal Weight
-
Approx. 1.04 kg
-
Main Body Weight
-
Approx. 1.45 kg
-
Overall Weight
-
Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)
-
Max Operating Time
-
Approx. 150 minutes [2]
-
Intelligent Features
-
ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
-
Storage Temperature
-
-20° to 60° C (-4° to 140° F)
-
Operating Temperature
-
-10° to 40° C (14° to 104° F)
Camera
-
Sensor Size
-
35mm full-frame CMOS image sensor
-
Base Lens Mount
-
DX Mount, and support for other mount units
-
Supported Lens Mounts
-
DL mount (included), L mount, M mount, E mount (third-party), PL mount (third-party)
-
DL Lens
-
DJI DL 18 mm F2.8 ASPH Lens
DJI DL 24 mm F2.8 LS ASPH Lens
DJI DL 35 mm F2.8 LS ASPH Lens
DJI DL 50 mm F2.8 LS ASPH Lens
DJI DL 75 mm F1.8 Lens
DJI DL PZ 17-28 mm T3.0 ASPH Lens
-
Dynamic Range
-
14+ stops
-
White Balance
-
Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
-
Gamma
-
D-Log, Rec.709, HLG
-
EI Range
-
X9-8K: EI 200 to EI 6400
With Dynamic Range Expansion off: Dual native ISO 320/1600
With Dynamic Range Expansion on: Dual native ISO 800/4000
X9-6K: EI 200-12800, dual native ISO 800/5000
-
Shutter Speed
-
Electronic Rolling Shutter 1/24s-1/8000s
-
ND
-
Built-in 9-stop ND filters:
Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
-
Focus Control [3]
-
Autofocus, Manual Focus, Automated Manual Focus
-
Supported File System
-
exFAT
-
Recording Format
-
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 4444 XQ
Apple ProRes 422 HQ/Apple ProRes 422 LT
H.264 (4:2:0 10-bit)
-
Storage Media
-
DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
-
DJI PROSSD 1TB Recording Format
-
No restriction on recording format
-
CFexpress 2.0 Type B Recording Format [4]
-
ProRes 422 HQ/LT:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/
59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/
59.94/60/72/96/100/120fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/
59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/
50/59.94/60/72/96/100/120fps
-
USB-C SSD Recording Format [5]
-
ProRes 422 HQ/LT:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
-
Built-in Mic
-
Built-in 2-ch stereo
-
Audio Format
-
LPCM 2-ch, 24-bit 48kHz
Gimbal
-
Mechanical Range
-
Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-Axis Range: approx 130mm [6]
-
Controllable Range
-
Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°
-
Max Control Speed (°/s)
-
DJI Master Wheels or DJI Force Pro:
Tilt: 360°/s
Roll: 360°/s
Pan: 360°/s
Ronin 4D Hand Grips:
Tilt: 120°/s
Roll: 120°/s
Pan: 120°/s
-
Maximum Z-Axis Payload
-
2000 g (including 1040 g gimbal)
-
Angular Vibration Range
-
±0.01°
LiDAR Range Finder
-
Weight
-
88 g
-
Dimensions (length×width×height)
-
71×47×34 mm
-
Operating Temperature
-
-10° to 40° C (14° to 104° F)
-
LiDAR Range Measurement Precision
-
0.3-1m (±1%)
1-10m (±1.5%）
-
FOV
-
30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)
30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)
-
Safety Rating
-
Class 1 (IEC 60825-1:2014) (safe for human eyes)
-
Operating Environment
-
Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.
-
Laser Wavelength
-
940 nm
-
Single Pulse Width
-
Two kinds of pulses emit in circulation: 5ns and 33.4ns.
-
Max Laser Power
-
6 W
Main Monitor
-
Screen Size
-
5.5 inches (diagonal)
-
Resolution
-
1920×1080
-
Refresh Rate
-
60 Hz
-
Max Brightness
-
1000 cd/m²
-
Screen
-
Rotational LCD touchscreen
Battery
-
Battery Type
-
TB50 Intelligent Battery
-
Capacity
-
4280 mAh
-
Energy
-
97.58 Wh
-
Voltage
-
22.8 V
-
Max Charging Voltage
-
26.1 V
-
Max Charging Power
-
180 W
-
Charging Temperature Range
-
5° to 40° C (41° to 104° F)
-
Charging Time
-
Approx. 1.5 hours (with standard 86W power adapter)
DJI O3 Pro Video Transmission
-
Max Transmission Distance
-
20,000 ft (approx. 6km, FCC-compliant) [7]
-
Max Transmission Resolution and Frame Rate
-
1920×1080 @60fps
-
Minimum End-to-End Latency
-
100 ms or 68 ms [8]
-
Wireless Frequency
-
Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band: [9]
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
-
Transmitter Power (EIRP)
-
2.400-2.4835 GHz:
<33 dBm (FCC); <20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz
<23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz:
<30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC); <23 dBm (CE/MIC)
5.725-5.850 GHz:
<33 dBm (FCC/SRRC); <14 dBm (CE)
-
Max Bandwidth
-
40 MHz
-
Max Bitrate
-
50 Mbps
Interface
-
Main Body
-
3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack × 1
USB3.1 Type-C Data Port × 1
6-pin 1B DC-IN (DC 12-30 V) × 1
Battery Mount Power Port (female) × 1
4D Expansion Plate Data Port (female) × 1
High-Bright Main Monitor Port × 1
Hand Grips Port × 2
Top Handle Port × 1
HDMI Type-A Video Output Port × 1 [10]
-
X9 Gimbal
-
LiDAR Range Finder/ Focus Motor Port × 2
-
TB50 Battery Mount
-
Battery Mount Power Port (male) × 1
TB50 Battery Port × 1
4D Video Transmitter
-
Dimensions
-
89×21×137 mm
-
4D Video Transmitter Port
-
4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1
Remote Monitor
-
Dimensions
-
216×58×166 mm (includes monitor cage)
-
Screen Size
-
7 inches (diagonal)
-
Max Brightness
-
1500 cd/m²
-
Screen Resolution
-
1920×1200
-
Refresh Rate
-
60 Hz
-
Max Battery Life
-
Approx. 2 hours [11]
-
Operating Temperature
-
0° to 40° C (32° to 104° F)
-
Storage Temperature
-
-20° to 60° C (-4° to 140° F)
-
Power System
-
DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
-
Remote Monitor Port
-
3.5mm Stereo Jack × 1
microSD Card Slot × 1
HDMI Type-A Video Input Port × 1 [12]
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
-
Remote Monitor Expansion Port
-
Remote Monitor Expansion High-Speed Port (male) × 1
HDMI 1.4 Type-A Video Output Port × 1
6-pin 1B DC-IN (DC 6.8-17.6 V) × 1
3G-SDI (Level A) BNC Video Output Port × 1
Flex
-
Extension Cable Length
-
2 m
-
Weight
-
Approx. 725 g (including Ronin 4D Hand Grip Adapter and Hand Grips Adapter Cable)
-
Supported Accessories
-
Ronin 4D Hand Grips
High-Bright Main Monitor
LiDAR Range Finder
Zenmuse X9 Focus Motor
DL PZ 17-28 mm T3.0 ASPH Lens
-
Imager Size
-
Full frame (36×24 mm)
-
Focal Length
-
17-28 mm
-
MOD (From Object to Image Plane)
-
17 mm: 0.19 m
28 mm: 0.26 m
-
Aperture Range
-
T3.0 to T22
-
Filter Diameter
-
Φ 67 mm
-
Elements/Groups
-
13/11
-
External Dimensions (zoom motor excluded)
-
Φ 78 mm (max) × L 100.1 mm (to mount, hood excluded)
Φ 78 mm (max) × L 117.2 mm (to mount, hood included)
-
Lens Mount
-
DL mount
-
Weight (lens hood included)
-
Approx. 520 g
-
Operating Temperature
-
-10° to 55° C (14° to 131° F)
-
Storage Temperature
-
10° to 35° C (50° to 95° F)
-
Storage Humidity
-
45%-75%
