Description
DJI RS 3 Pro
Ready When You Are
With every detail, DJI RS 3 delivers a flexible and efficient shooting experience to solo creators and independent crews. Light and sleek, it provides professional stabilization and efficient control for more creative freedom and endless possibilities. DJI RS 3 is ready when you are.
Get Started Right Away
It's All About Speed
Quick-Release Plates
With dual-layered quick-release plates, mounting a camera onto RS 3 is fast and convenient, with no need to re-balance the gimbal after swapping out a new battery or memory card.
A newly added fine-tuning knob on the tilt axis allows the camera to slide forward or backward with millimeter-grade precision to achieve accurate balancing more easily when changing lenses.
Automated Axis Locks
RS 3 lets you get up and running instantly. When the gimbal is powered off, press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making transportation and travel significantly more efficient. Press and hold the power button and it will fold and lock automatically.
Wireless Shutter Control
By implementing Dual-Mode Bluetooth, RS 3 supports wireless shutter control, saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.
Check Camera Compatibility
Stay Smooth, Professional Stabilization
Excellent Weight-to-Payload Ratio
Weighing only 1.3 kg/2.8 lbs (including gimbal, battery grip, and quick-release plates), RS 3 can be held easily in one hand, while its 3kg/6.6lb load capacity is more than enough to support mainstream cameras, including the A7S3 or Canon R5 with a 24-70mm F2.8 lens.
3rd-Gen RS Stabilization Algorithm
Thanks to a next-generation RS stabilization algorithm, RS 3 provides enhanced stability in any scenario. Laboratory testing shows RS 3 provides a 20% increase in stability over RSC 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.
Stabilization Testing Data Comparison
Beyond Smooth
When you need even smoother results, turn on Super Smooth mode. RS 3 will increase motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when 100mm-equivalent focal lenses are used.
All Within Reach, Immediate Control & Fast Parameter Setting
1.8" OLED Touchscreen
Compared with the black and white screen of RSC 2, RS 3 is equipped with a 1.8-inch OLED full-color touchscreen with an 80% larger display. It also supports most Ronin app settings, providing intuitive and precise control together with the redesigned user interface.
Instant Mode Switching
By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.
Customizable Front Dial
Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera's shutter, aperture, ISO, or gimbal movements, making it exceptionally convenient for single-handed operation.
Practical Powerhouse
Efficient Video Transmission
Monitoring via Smartphone
RS 3 supports the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter) to transmit 1080p/30fps HD live feeds directly to a mobile device. The maximum transmission distance is 200 meters [4] and the end-to-end transmission latency is as low as 60 ms. A smartphone can also be attached to the NATO port on RS 3 with the phone holder for wireless monitoring.
Integrated Monitoring and Control
Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience.
Force Mobile
With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 3 gimbal for more flexible and dynamic camera movements.
Focus on Creation
A Battery Built for Pros
Quick-Release Design
The new RS 3 battery grip features a cartridge design, making it easier to swap batteries and smaller for storage compared with RSC 2. It can even be charged independently from the gimbal.
12-Hour Operating Time + Fast Charging
The new battery grip provides an extended runtime of up to 12 hours, enough to handle continuous shooting throughout the day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 3 powered almost indefinitely.
Creativity Unleashed
Intelligent Functions
Motionlapse
Track
Panorama
Versatile Additions
Accessories
New Briefcase Handle
The redesigned briefcase handle is foldable for convenient storage, and comes with a new ergonomic handle to make it easier and faster to install and switch to Briefcase mode. The built-in cold shoe mount and 1/4"-20 mounting holes can connect to external monitors for shooting assistance, making low-angle camera movements more intuitive.
All-New Focus Motor
The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m) and audible noise is reduced by 50%. This delivers a smoother focusing experience and reduces the effect on audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.
Vertical Camera Mount
Install the Vertical Camera Mount to attach the camera vertically to RS 3 while avoiding camera ports, allowing easy portrait shooting at different angles for high-quality social media content.
Flexible Handling
Multiple Operation Modes
Vertical Mode
Briefcase Mode
Underslung Mode
Transportation and Storage
Footnotes:
Check the camera compatibility list for detailed information on supported camera models.
- Requires camera control cable. Check the camera compatibility list for detailed information on supported camera models.
- Sold separately.
- Tested in a closed environment in favorable conditions and an unobstructed wireless signal using the FCC and SRRC standard (max 100 m using the CE standard). Actual results may vary.
- Measured with the gimbal balanced, equipment in a level and stationary state, and three axes in an active state.
- Some accessories sold separately.
Specifications
DJI RS3 Pro Specifications Table
| group_title | item_title | spec_key | spec_value |
|---|---|---|---|
| Peripheral | Accessory Port | "RSA/NATO Ports | |
| 1/4""-20 Mounting Hole | |||
| Cold Shoe | |||
| Video Transmission/Focus Motor Port (USB-C) | |||
| RSS Camera Control Port (USB-C) | |||
| Focus Motor Port (USB-C)" | |||
| Peripheral | Battery | "Model: BG30-1950 mAh-15.4V | |
| Type: LiPo 4S | |||
| Capacity: 1950 mAh | |||
| Energy: 30 Wh | |||
| Max. Runtime: 12 hours | |||
| Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers) | |||
| Suggested Charging Temperature: 5° to 40° C (41° to 104° F)" | |||
| Peripheral | Connections | "Bluetooth 5.0 | |
| Charging Port (USB-C)" | |||
| Peripheral | Ronin App Requirements | "iOS 11.0 or above | |
| Android 7.0 or above" | |||
| Peripheral | Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai | |
| Working Performance | Tested Payload | 4.5 kg (10 lbs) | |
| Working Performance | Maximum Controlled Rotation Speed | "Pan: 360°/s | |
| Tilt: 360°/s | |||
| Roll: 360°/s" | |||
| Working Performance | Mechanical Range | "Pan axis: 360° continuous rotation | |
| Roll axis: -95° to +240° | |||
| Tilt axis: -112° to +214°" | |||
| Mechanical & Electrical Characteristics | Operating Frequency | 2.400-2.484 GHz | |
| Mechanical & Electrical Properties | Bluetooth Transmitter Power | <8 dBm | |
| Mechanical & Electrical Properties | Operating Temperature | -20° to 45° C (-4° to 113° F) | |
| Mechanical & Electrical Properties | Weight | "Gimbal: Approx. 1,143 g (2.51 lbs) | |
| Grip: Approx. 265 g (0.58 lbs) | |||
| Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs) | |||
| Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)" | |||
| Mechanical & Electrical Properties | Gimbal Dimensions | "Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) | |
| Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)" | |||
| DJI Ronin Image Transmitter | Connections | "Power/Communication Port (USB-C) | |
| HDMI Port (Mini HDMI) | |||
| RSS Camera Control Port (USB-C)" | |||
| DJI Ronin Image Transmitter | Expansion Port | Cold Shoe | |
| DJI Ronin Image Transmitter | Operating Frequency | "2.400-2.484 GHz | |
| 5.725-5.850 GHz" | |||
| DJI Ronin Image Transmitter | Weight | 126 g (0.27 lbs) | |
| DJI Ronin Image Transmitter | Dimensions | Length: 82×63×24 mm (L×W×H) | |
| DJI Ronin Image Transmitter | Transmitter Power (EIRP) | "2.400-2.484 GHz: | |
| <25 dBm (FCC) | |||
| <20 dBm (CE/SRRC/MIC) | |||
| 5.725-5.850 GHz: | |||
| <25 dBm (FCC/SRRC) | |||
| <14 dBm (CE)" | |||
| DJI Ronin Image Transmitter | Battery | "Capacity: 2970 mAh | |
| Compatible Charger: 5 V/2 A<br> | |||
| Charging Time: Approx. 2.5 hours<br> | |||
| Operating Time: Approx. 3.5 hours" | |||
| DJI Ronin Image Transmitter | Transmission Range | "200 m (SRRC/FCC) | |
| 100 m (CE)" | |||
| DJI Ronin Image Transmitter | Latency | 60 ms | |
| DJI Ronin Image Transmitter | Operating Current/Voltage | 900 mA/3.7 V | |
| DJI Ronin Image Transmitter | Operating Temperature | 0° to 45° C (32° to 113° F) | |
| DJI LiDAR Range Finder (RS) | Accessory Port | "Cold Shoe<br> | |
| 1/4""-20 Mounting Hole | |||
| USB-C Port | |||
| USB-C Power/CVBS/CAN Data Port" | |||
| DJI LiDAR Range Finder (RS) | Image Sensor | "Resolution: 448×298 on the RS touchscreen | |
| FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal) | |||
| Frame Rate: 30fps | |||
| Focal Length: 30mm Equivalent" | |||
| DJI LiDAR Range Finder (RS) | ToF Sensor | "Resolution: 240×180 | |
| Sensing Range: 0.5 to 14 m<sup>[3]</sup> | |||
| FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal) | |||
| Frequency: 25 Hz | |||
| Focal Length: 30mm equivalent | |||
| Distance Error: 1%" | |||
| DJI LiDAR Range Finder (RS) | Machine Learning | "Frequency: 30 Hz | |
| Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow | |||
| Smart Object Identification: Human face, head, and body" | |||
| DJI LiDAR Range Finder (RS) | Electrical Properties | "Power Consumption: 6.8 W | |
| Input: 7 to 16 V" | |||
| DJI LiDAR Range Finder (RS) | Operating Temperature | -20° to 45° C (-4° to 113° F) | |
| DJI LiDAR Range Finder (RS) | Mechanical Properties | "Dimensions: 66×57×24 mm (L×W×H) | |
| Weight: Approx. 130 g (0.28 lbs) | |||
| Mounting Plate Height: 30 mm" | |||
| DJI LiDAR Range Finder (RS) | Lenses that Do Not Need Calibration | "DZOFILM Vespid Cyber 35 mm | |
| DZOFILM Vespid Cyber 50 mm | |||
| DZOFILM Vespid Cyber 75 mm" |

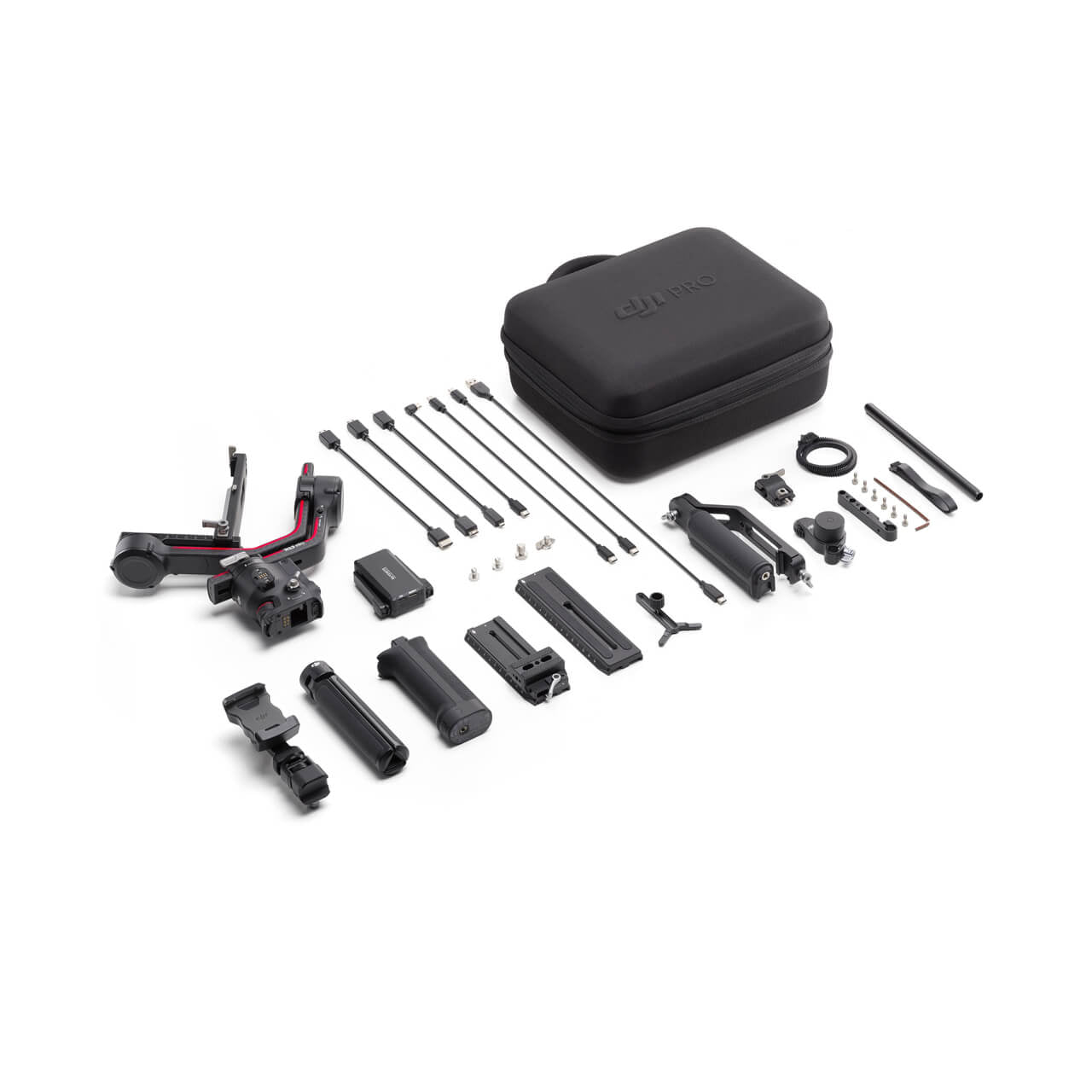

In The Box
| Accessories |
|---|
| Carrying Case |
| Gimbal |
| BG30 Grip |
| USB-C Charging Cable (40 cm) |
| Lens-Fastening Support (Extended) |
| Extended Grip/Tripod (Metal) |
| Quick-Release Plate (Arca-Swiss/Manfrotto) |
| Briefcase Handle |
| Lower Quick-Release Plate (Extended) |
| Phone Holder |
| Focus Motor (2022) |
| Focus Motor Rod Mount Kit Combo |
| Focus Gear Strip |
| Ronin Image Transmitter |
| USB-C Power Cable (20 cm) |
| Mini-HDMI to HDMI Cable (20 cm) |
| Mini-HDMI to Mini-HDMI Cable (20 cm) |
| Mini-HDMI to Micro-HDMI Cable (20 cm) |
| Multi-Camera Control Cable (USB-C, 30 cm) |
| Lens-Fastening Strap |
| Hook-and-Loop Strap |
| Screw Kit |
