DJI RS 5

The DJI RS 5 features touchscreen subject selection with the new tracking module, smooth balancing from fine-tuning knobs, and direct control via the new briefcase handle all backed by faster charging and extended battery life.

• Enhanced Intelligent Tracking and Composition

• Briefcase Handle with Gimbal & Camera Control

• 1-Hour Full Charge, 15% Extended Runtime

• Fine-Tuning Knobs and Teflon™ Enhanced Balancing

• New Z-Axis Indicator

• 2nd-Gen Automated Axis Locks

RS Enhanced Intelligent Tracking Module

The module lets you frame and track any subject from the gimbal touchscreen,
keeping it precisely positioned. And when tracking a person, it offers a range of up to 10
meters and can reacquire the subject if they temporarily leave the frame.

Next-Gen Algorithm, Enhanced Torque

Peak motor torque is up by 50% over the previous model, offering stability in fast-moving
scenes. The 5th-Gen RS Stabilization Algorithm further enhances stabilization for
walking, running, and vertical shooting, striking an ideal balance between stability and
Control.

Compact Body With up to 3kg Payload

The gimbal weighs just 1.46 kg with battery grip and quick-release plates, and switches
to vertical shooting without extra accessories. With a robust 3 kg (6.6 lbs) payload
capacity, it can carry mainstream mirrorless camera and lens combinations with ease.

Compatible Examples

• Sony: FX3/A7M4/A7C/A1 + FE 24-70mm F2.8

• Canon: R5 Mark II + RF 24-70mm F2.8

• Nikon: Z6 III/Z7 II + Z 24-70mm F2.8

• Panasonic: S5M2 + 24-60mm F2.8

• Fujifilm: X-T5 + XF 16-55mm F2.8

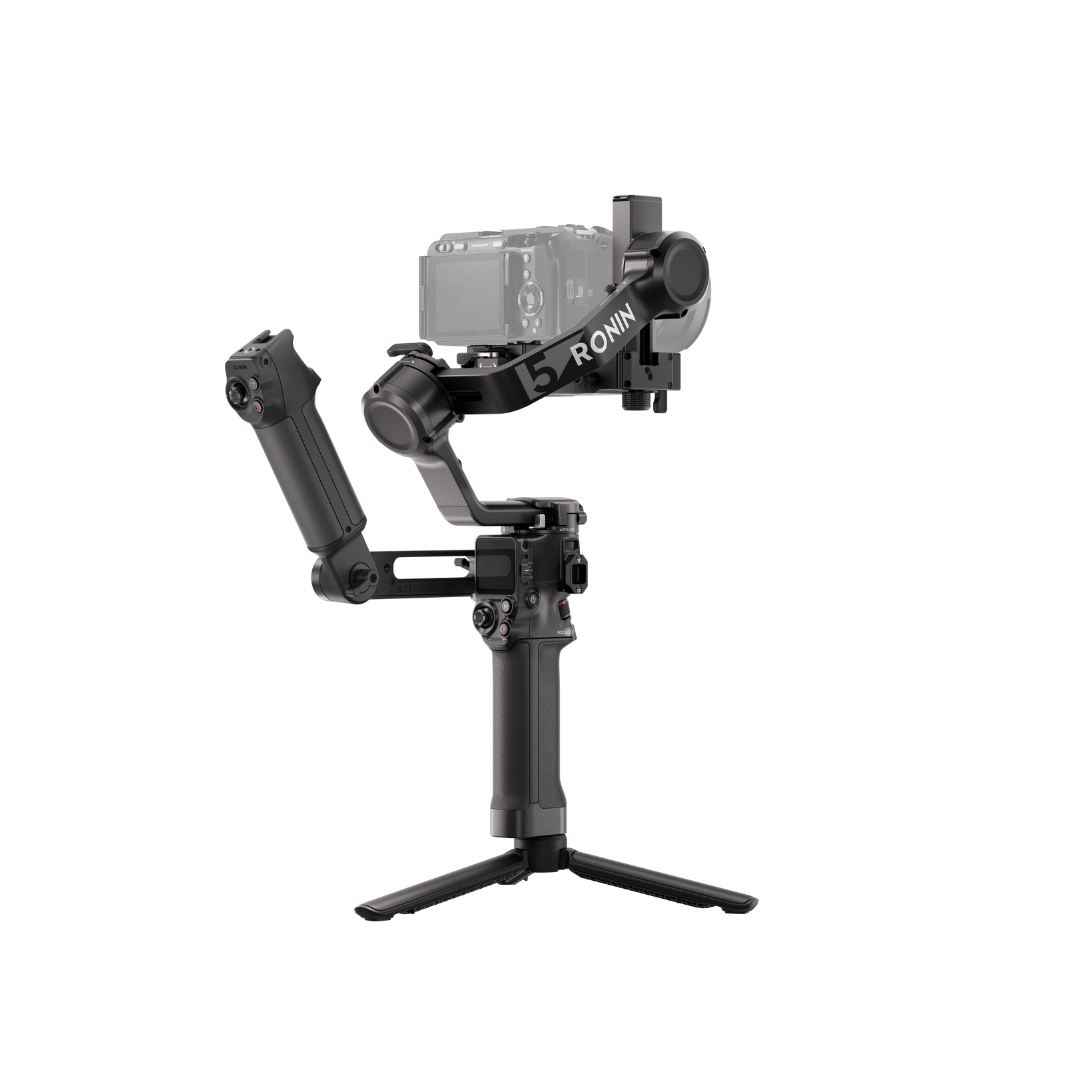

New Electronic Briefcase Handle

The new Electronic Briefcase Handle offers intuitive, effortless single‑handed
operation, featuring a joystick and buttons that control the gimbal and camera for more
creative angles.

Longer Runtime, Fully Charged in 1 Hour

Fully charge DJI RS 5 in just one hour a 60% increase in speed. The standard battery
delivers approximately 14 hours of standby time, a 15% improvement.

DJI RS BG70 High-Capacity Battery Grip

The new BG70 High-Capacity Battery Grip can extend RS 5's battery standby time to 30 hours.

New Bluetooth Shutter Support for Panasonic & Fujifilm

In addition to cameras from Sony, Canon, and Nikon, the RS 5's Bluetooth shutter now supports specific Panasonic and Fujifilm cameras, enabling wireless control of shutter, zoom, and Clear Image Zoom with no cables required.

Z-Axis Indicator

The new Z‑Axis Indicator gives you instant feedback to fine‑tune your footsteps for steadier, more professional shots.

Smooth & Precise Balancing

Fine-tuning knobs on each axis arm enable quick, precise balancing through a leadscrew mechanism. Combined with Teflon™ interlayers, RS 5 delivers smooth and precise balancing even with heavier professional setups.

2nd-Gen Automated Axis Locks

The 2nd-Gen Automated Axis Locks automatically lock the gimbal upon power-off or sleep for easier transitions and storage. They unlock just as quickly upon power-on, getting you ready to film in an instant for those critical moments.

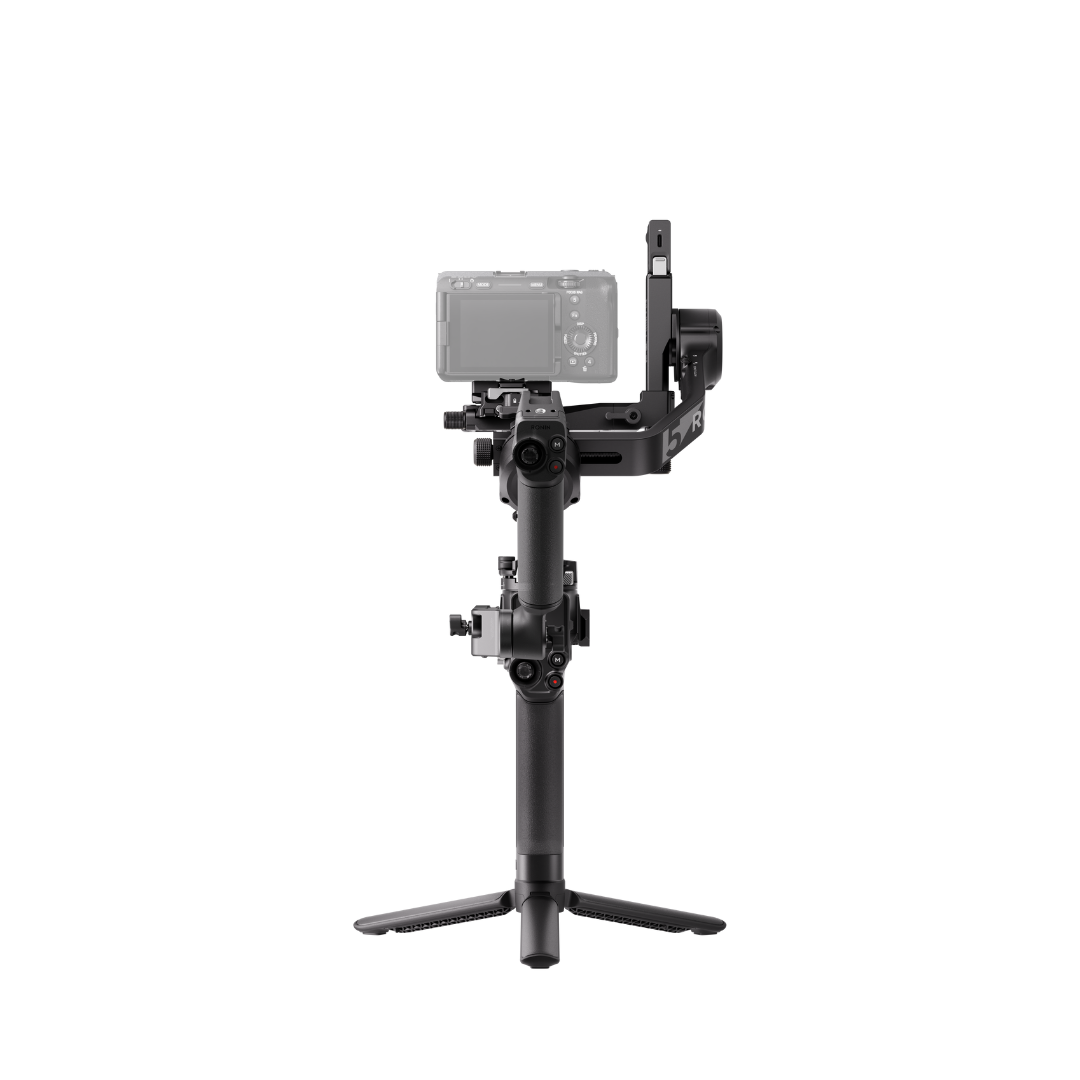

3rd-Gen Native Vertical Shooting

To switch to vertical shooting, simply loosen and press the single-side knob, remove the gimbal's horizontal plate, rotate it 90°, and then tighten it back in place all in just a few seconds.

Dual-Layered Quick-Release Plates

The Arca-Swiss upper plate and Manfrotto lower plate allow quick switching between gimbal and tripod without rebalancing, thanks to position memory. In addition, the upper plate adds an adjustable guide for secure camera mounting.

Support for DJI Focus Pro Motor

When paired with two Focus Pro Motors, RS 5 allows cinematographers to adjust the lens zoom via the joystick and precisely control the focus via the dial, facilitating smooth and effortless lens control.

Support for DJI SDR Transmission

Both independent cinematographers and small crews can utilize the DJI SDR Transmission for high-definition live feeds, remote gimbal and camera control, Force Mobile, and more.

RSA Communication Port

The RSA port connects to the Electronic Briefcase Handle, RS Tethered Control Handle, and remote-control ring handles. The open RS SDK also lets third-party developers create custom functions.

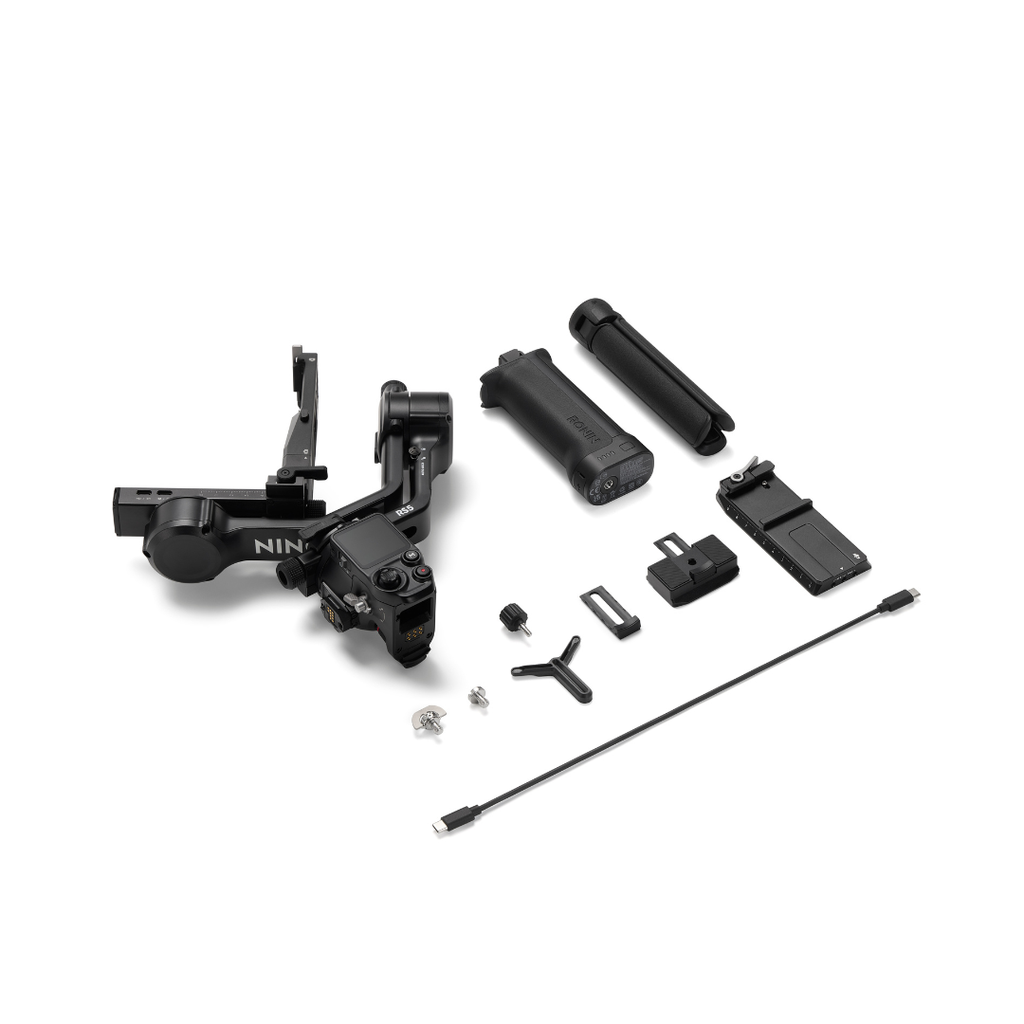

In the Box

DJI RS 5

• DJI RS 5 Gimbal

• Quick-Open Tripod

• DJI Logo Sticker

• Lens-Fastening Support

• Screw Kit

• RS 5 Upper Quick-Release Plate

• RS 5 Lower Quick-Release Plate

• BG33 Battery Grip

• Multi-Camera Control Cable (USB-C, 30 cm)

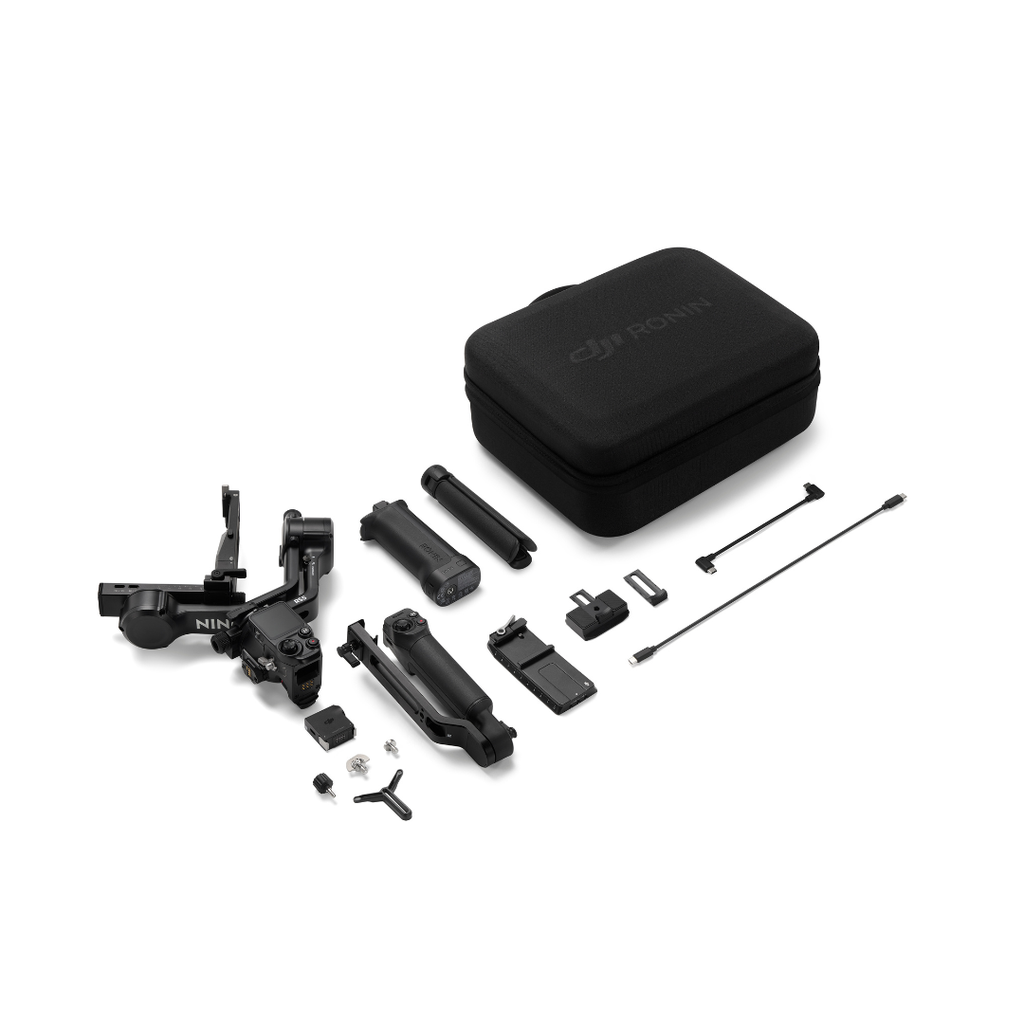

DJI RS 5 Combo

• Gimbal

• Quick-Open Tripod

• DJI Logo Sticker

• Carrying Case

• Lens-Fastening Support

• L-Shaped Cable (USB-C, 13 cm)

• Screw Kit

• RS 5 Upper Quick-Release Plate

• RS 5 Lower Quick-Release Plate

• BG33 Battery Grip

• RS Enhanced Intelligent Tracking Module

• Electronic Briefcase Handle

• Multi-Camera Control Cable (USB-C, 30 cm)


Specifications
