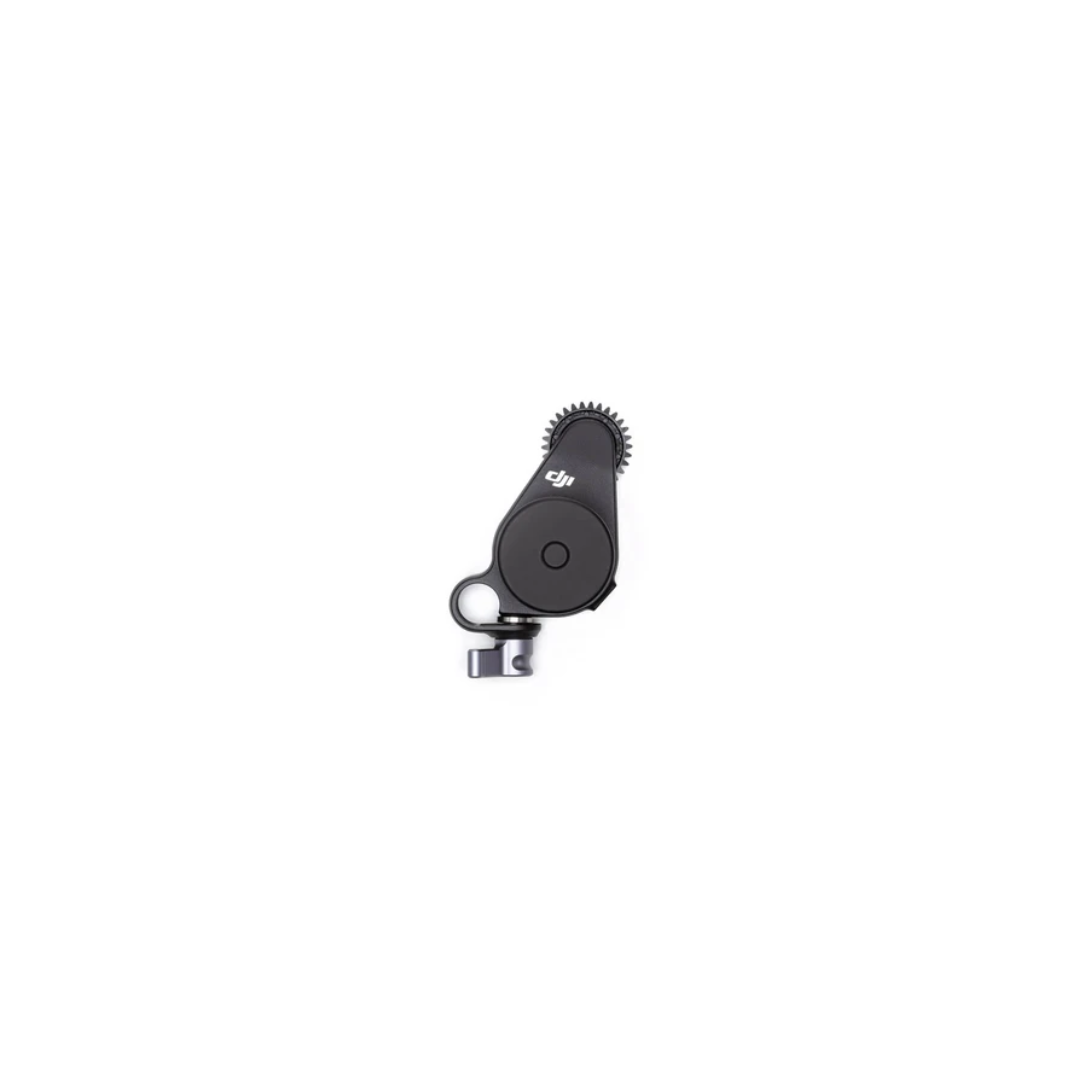

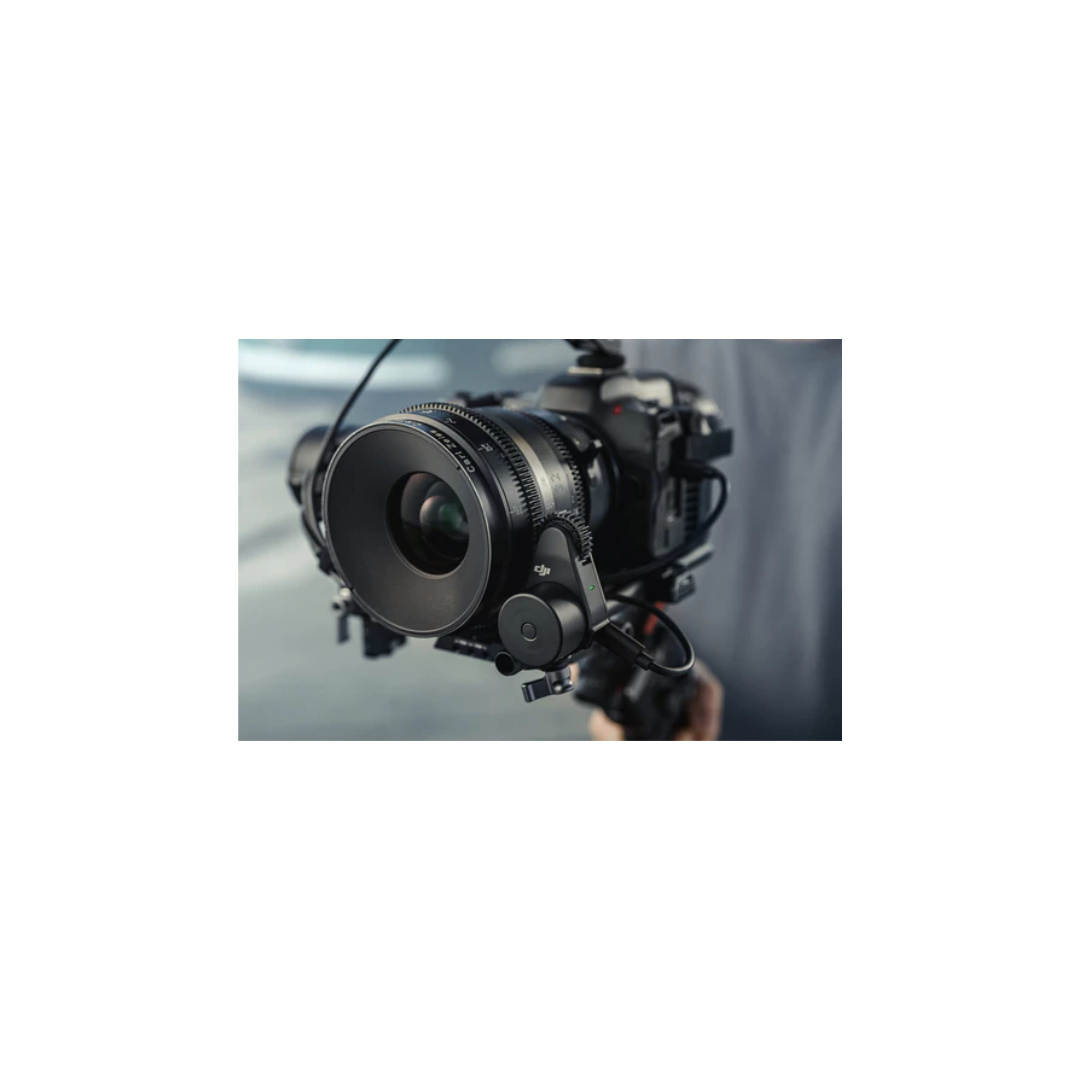

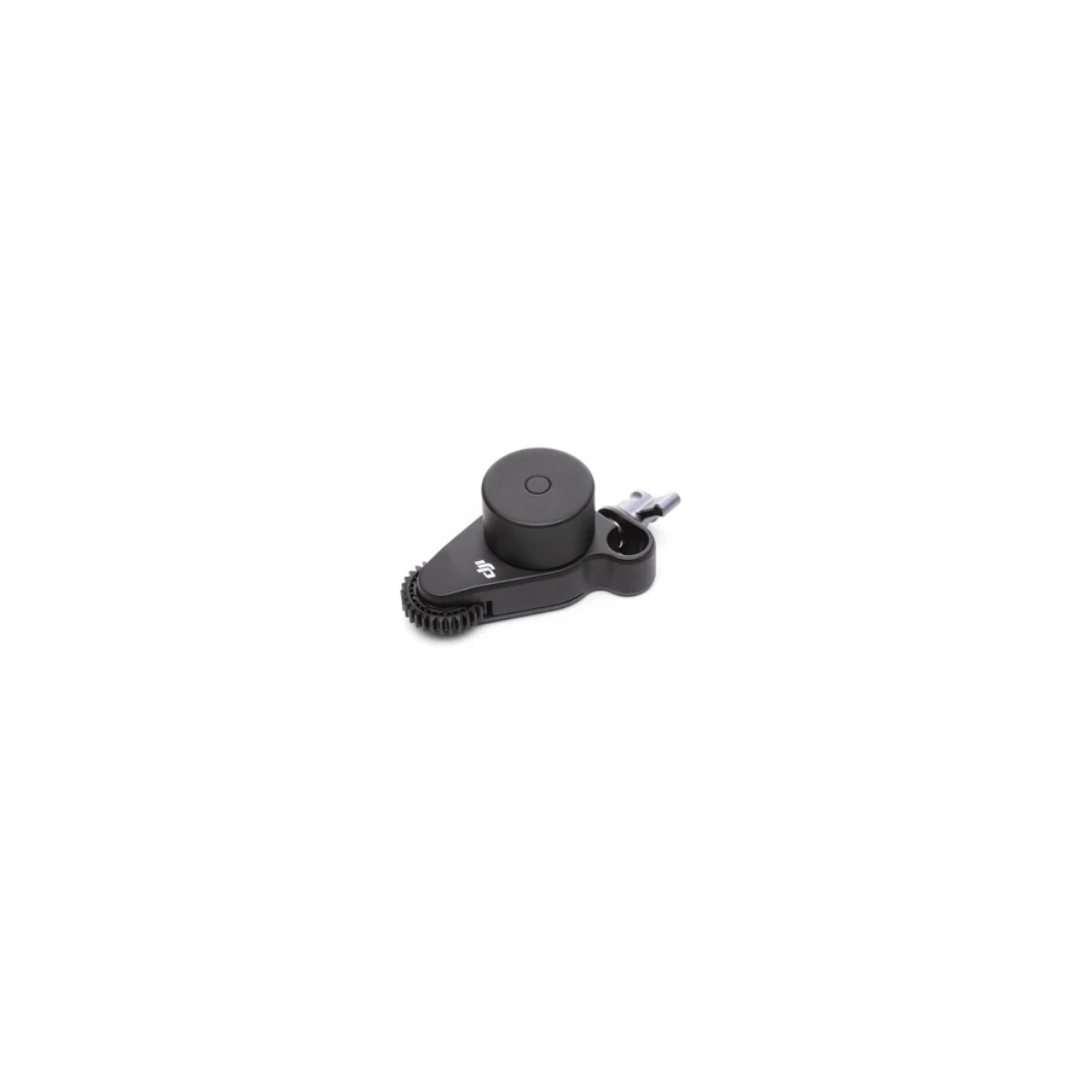

DJI RS Focus Motor (2022)

The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.

In The Box

Focus Motor (2022) × 1
Focus Motor Rod Mount Kit Combo × 1
Focus Gear Strip × 1
Multi-Camera Control Cable (USB-C, 30 cm) x 1
M4 Screw (10 mm) × 4
Allen Wrench (3 mm) × 1
Lens-Fastening Strap × 1

Specifications

Structure:
Weight: 108 g
Dimensions: 80×50×36 mm (L×W×H)
Rod: 12 mm

Specifications:
Max Torque: 1.0 N·m (8 V)
Max Speed: 180 rpm (8 V)

Electrical Properties:
Free Current: 50 mA (5 V)
Stall Current: 2.8 A (8 V)
Operating Voltage: 6 to 17.6 V

Noise:
45 dB

Gear:
Number of Teeth: 30
Module: 0.8

Operating Temperature:
-20° to 45° C (-4° to 113° F)

Compatibility

DJI RS 3 Pro
DJI RS 3
DJI RS 2
DJI RSC 2

Short Summary

Torque three times stronger and noise reduced by 50%. Quick-release structure delivers a smoother and more reliable focusing experience.
