Dronetag - Beacon

DronetagSKU: DT-BEACON

Price:
Sale price$304.00 CAD
Stock:
Backordered (usually ships in 2-4 weeks)

Description

*Currently Back-ordered - Please fill out an inquiry form below and a Sales Representative follow up.

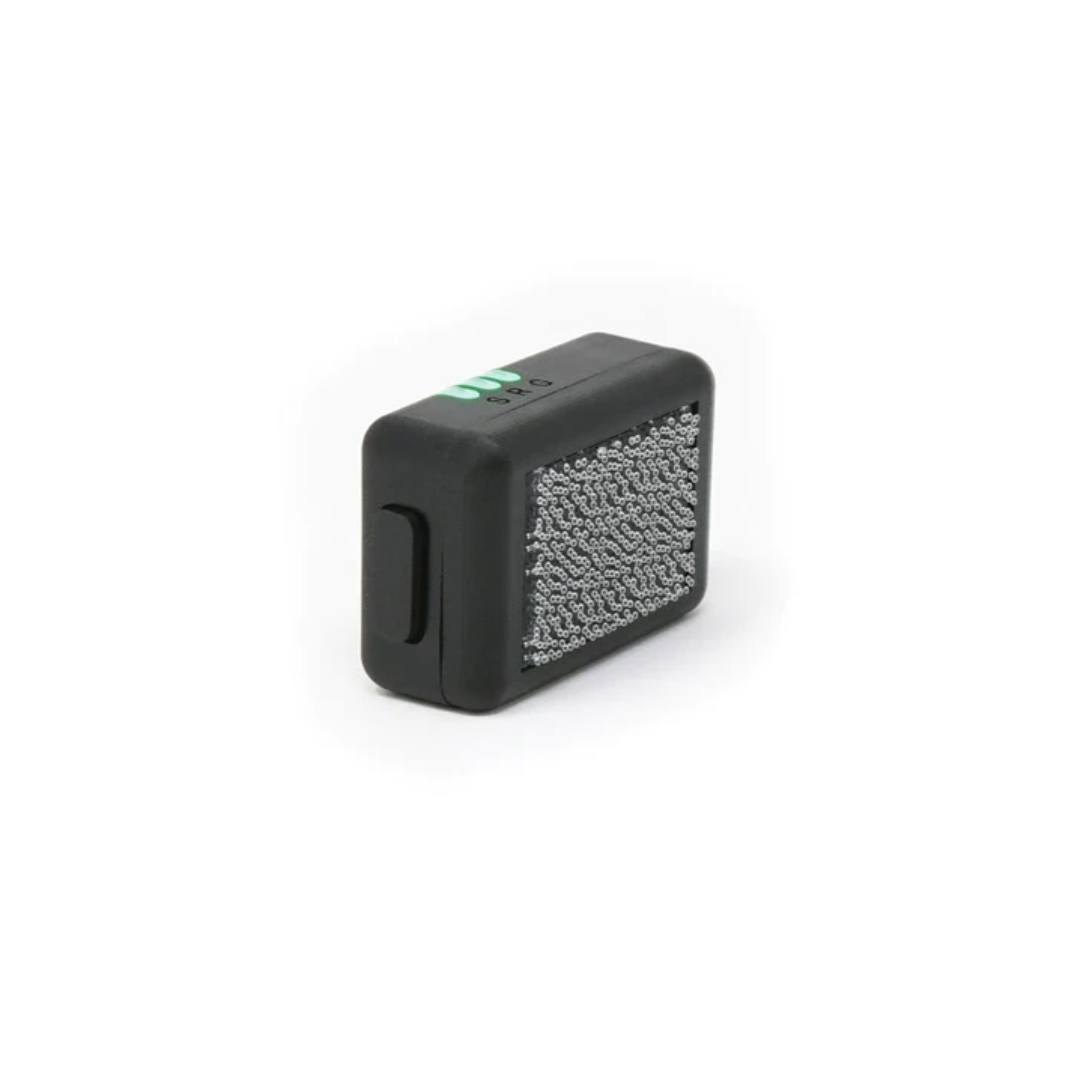

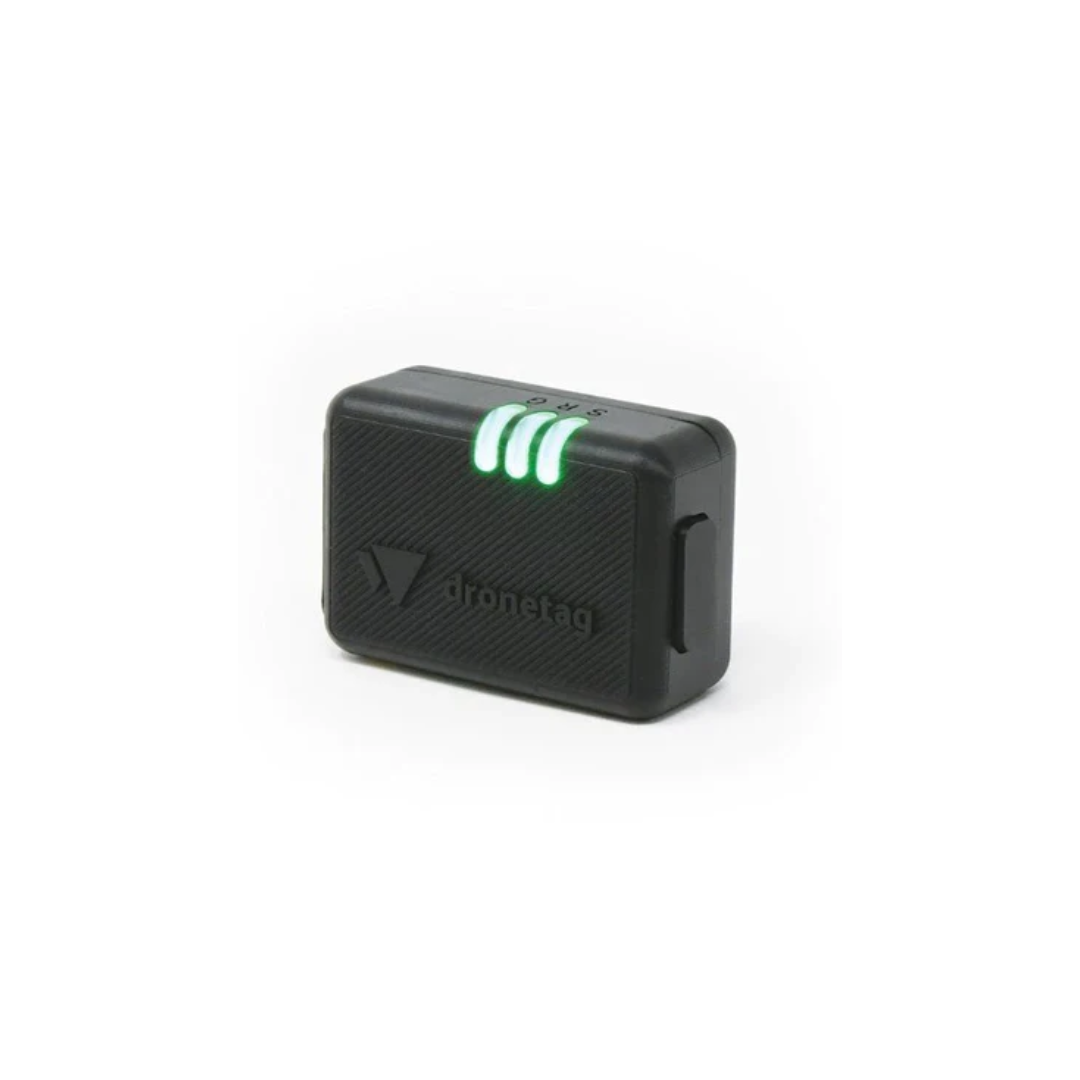

Dronetag Beacon -  Let Your Drone Fly Safe and Compliant in EU and US Regions

The Dronetag Beacon is a Direct / Broadcast Remote Identification device compatible with any drone.  New regulations require professional pilots in EU and US regions to make their drones digitally visible. Hence, the creation of Beacon, the add-on that makes drones instantly compliant with the latest DRI standards. Upgrade your existing drone, without the need to purchase new aircraft.

Attached Dronetag Beacon and instantly enhance your drone with DRI capability. The tiny device transmits the drone location via Bluetooth to up to a 3 km (1.86 miles) range.

16 Grams Packed with Technology

The size of 2 chocolate bar squares (16 g / 0.56 oz), Beacon opens the door to the digital experience for drones of all sizes.

Everywhere, Everytime, Ever

Fit the Beacon to nano-weight drones or large UAVs. Unparalleled up to 16 hours of battery life gives you enough time to accomplish the wildest missions. Re-closable dual lock fastener so strong that you can lift an average drone by it. Worldwide supported Bluetooth technology and the finest geolocation standards.

Supported Regions

  • European Union - ASD-STAN:  Compliant with prEN 4709-002 which requires Direct Remote Identification for drones above 250 grams flying below 120 meters in the Specific category.
  • USA - ASTM:  Compliant with ASTM F3411 which requires Broadcast Remote ID for all pilots flying out of FAA-recognized identification areas.
  • Other Countries:  As Beacon is only transmitting data via Bluetooth, it is usable anywhere in the world. All countries using ASD-STAN or ASTM standard are supported. Check your local rules.

Dronetag App - Available on All Devices

Manage your devices, check the airspace zones, plan your flights, inspect airborne drones around with their flight itineraries and notify other pilots about any airspace hazards. All that in one app – the Dronetag App.

Features

  • All Data Snug and Secured:  With over-the-air firmware updates and data encryption, your information will be safe and neatly organized in the mobile app.
  • Multiple Geolocation Standards:  Receiving signals from GPS, GLONASS, Galileo and SBAS for robust and reliable positioning.
  • Instant Direct Remote ID Upgrade:  Compliant with Direct / Broadcast Remote ID according to the prEN 4709-002 and ASTM F3411 standards.
  • Internal Bluetooth & GNSS Antennas:  With an option to add external Bluetooth antennas for better signal reception.
  • Unparalleled Up to 16 Hours of Battery Life:  Or use your drone as the power source for carefree flying without hustling to charge several devices.
  • Worry-free Flight From Take-off to Landing:  Beacon warns other closed-by pilots about potential dangers during take-off, landing, or when free-fall is detected.
  • Precise Sensors Onboard:  GNSS position estimation, pressure altitude measurement, and motion detection via accelerometer.
  • MAVlink & DJI A3 Support:  Professional DJI and Pixhawk flight controllers integration via our EXT port to connect to drone’s flight data.

Specifications

Short-range radio:  Bluetooth 2.4GHz
Sensors:  GNSS, barometer, accelerometer
Positioning:  GPS L1, GLONASS L1, Galileo E1, SBAS
Built-in Antennas:  Bluetooth and GNSS
Optional Antennas:  Bluetooth via MMCX plugs

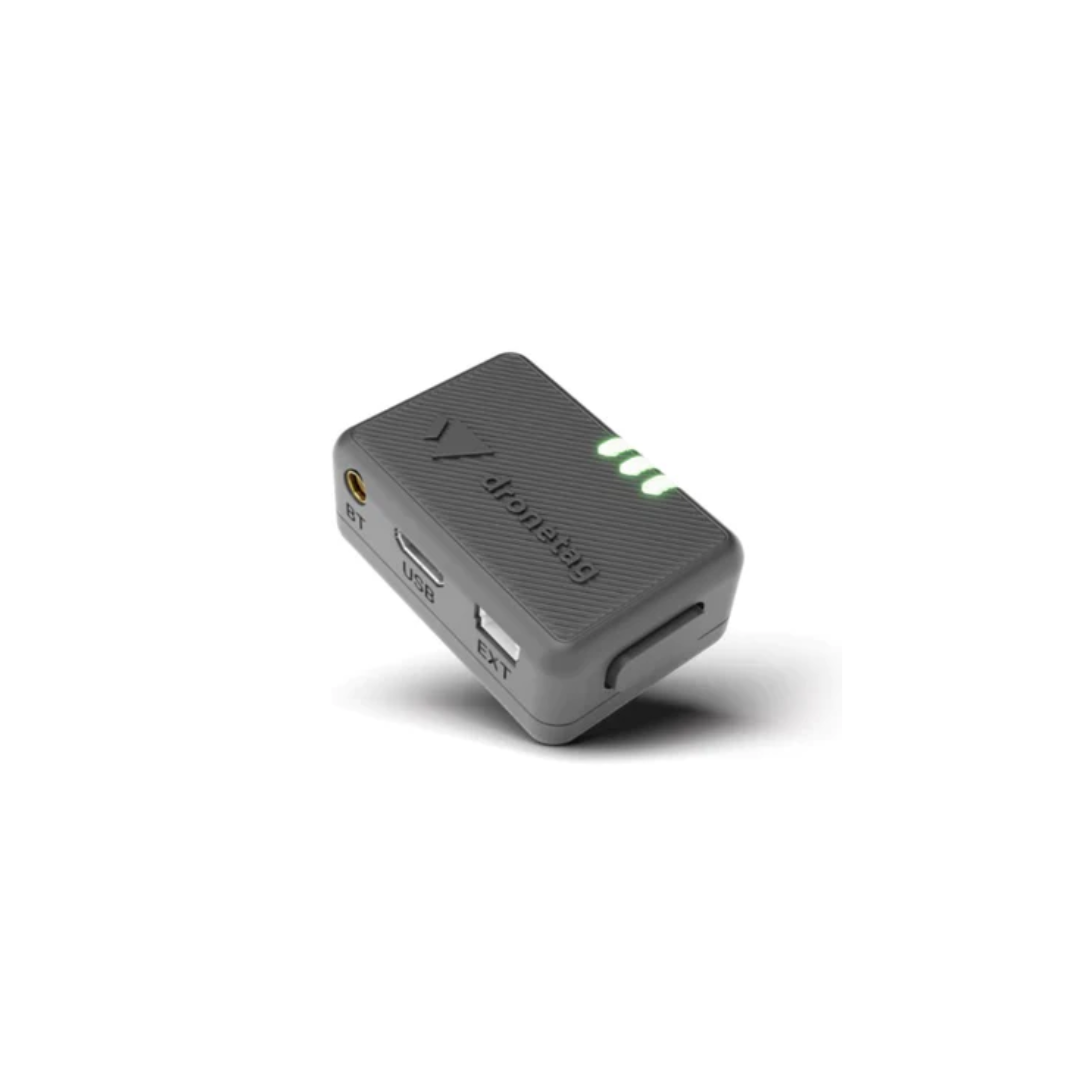

External ports:  3.3V extension connector and 5V Micro USB
Battery:  LiPo 3.7V 200 mAh
Battery life:  8-16 hours (depending on the configuration)
Charging:  5V Micro USB
Charging time:  2 hours from a discharged state
Average current consumption:  15mA
Maximum current consumption:  100mA
Enclosure:  plastic
Fastening mechanism:  3M Dual-lock SJ4570
IP rating:  IP43
Operating temperature:  -20 °C to +60 °C (-4 °F to 140 °F)
Dimensions:  37×26×16 mm (1.5×1.0×0.6 in)
Weight:  16 grams (0.56 oz)
