Inspired Flight - IF800 Tomcat Bundle

Inspired FlightSKU: B-800HBLU-N

Request a Quote:

Description

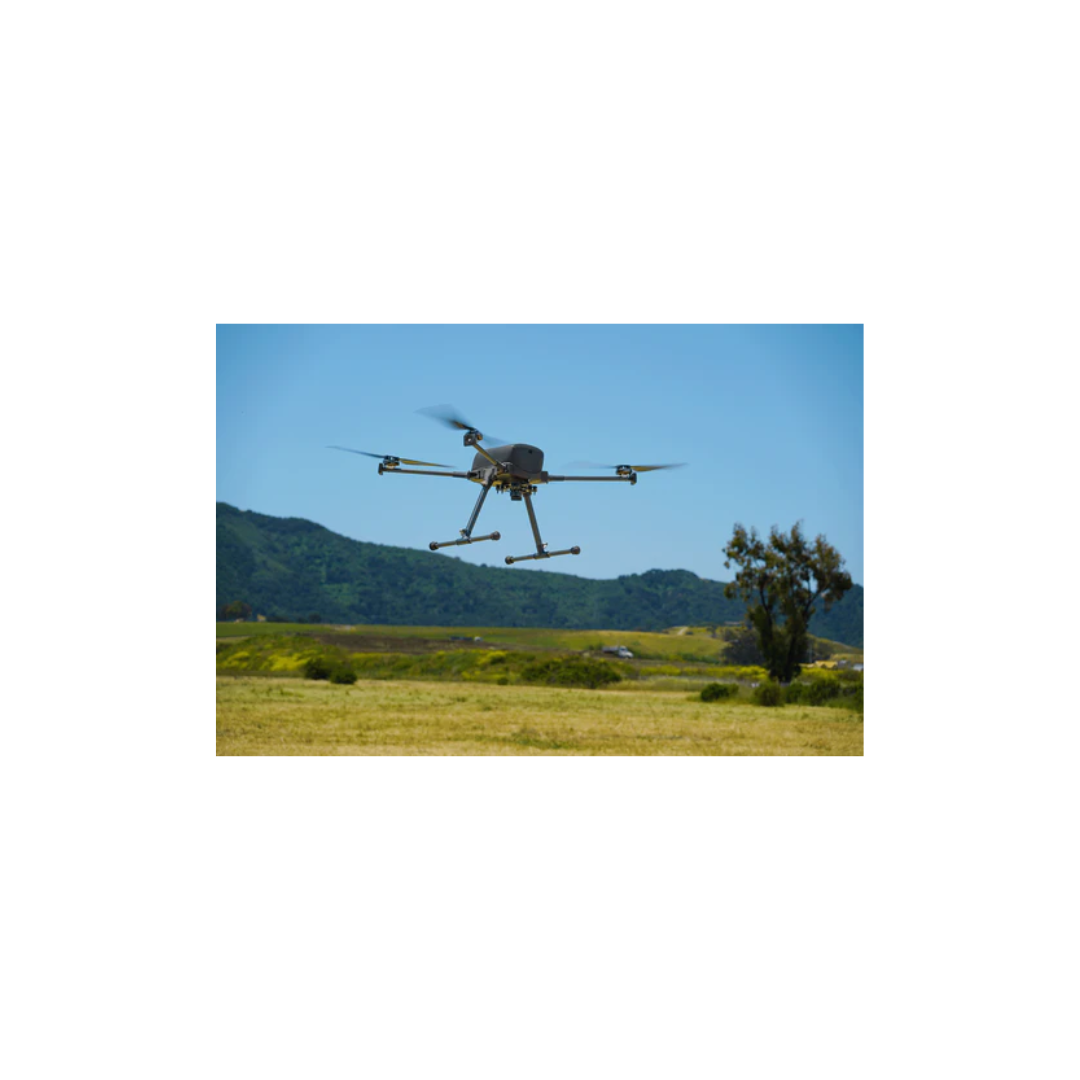

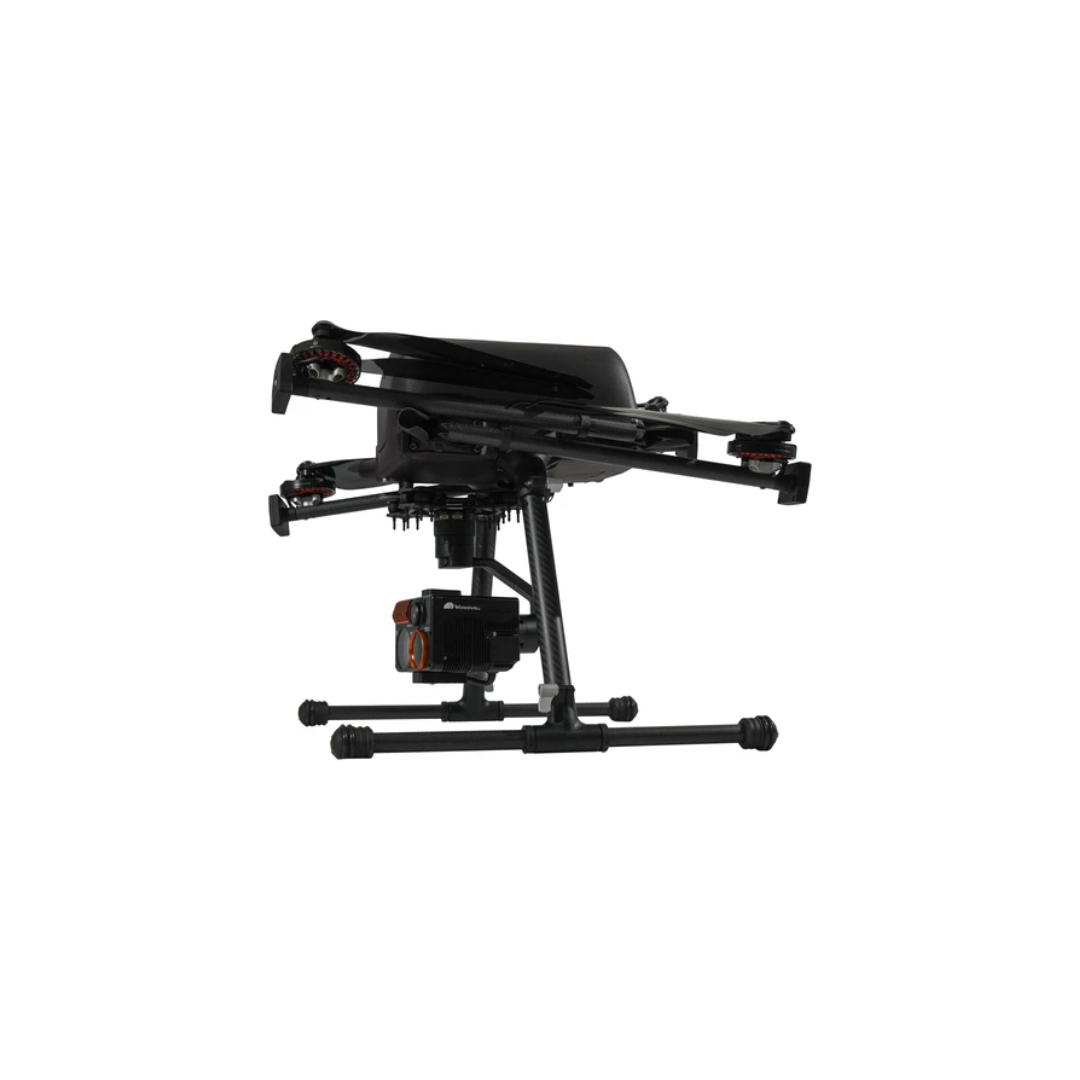

IF800 Tomcat



Portable, Deployable, Dependable. MEDIUM-LIFT UAS

The IF800 TOMCAT by Inspired Flight features a lightweight, compact, and foldable frame, making it easily transportable and deployable in diverse environments. Its specially designed case provides ample space for batteries and payload, ensuring convenience and protection during transit. Professionals in need of cutting-edge aerial capabilities, such as infrastructure inspections, terrain mapping, or lidar surveys, can rely on the IF800 TOMCAT as a dependable and versatile tool.

With an impressive flight time of 40 minutes and a payload capacity of 1.5 kg (max payload 3 kg), the medium-lift IF800 TOMCAT maximizes operational efficiency and productivity. Its dual hot swappable smart batteries enable uninterrupted flight operations, while the easy slide installation ensures minimal downtime during battery swaps.

Equipped with advanced features, the IF800 TOMCAT enhances its performance and functionality. The 30-degree upward-angle shooting capability allows users to capture crucial data from unique perspectives, expanding the possibilities of aerial missions. The inclusion of an FPV (First-Person View) camera enables operators to have real-time visual feedback and precise control during flights.

As a significant advancement in both performance and compliance, the IF800 TOMCAT emerges as a compelling alternative to fleets of DJI's M300 drones. Its cutting-edge technology and unwavering commitment to national security make it a trusted drone solution for commercial and government agencies, ensuring the safeguarding of sensitive data and enhancing operational efficiency.

IF800 TOMCAT features:

  • 40 min. flight time with 1.5 kg payload (max payload 3kg)
  • Dual hot swappable smart batteries with easy slide installation
  • Lightweight, compact & foldable frame
  • Easily transportable case with enough room for batteries & payload
  • 30 degree upward-angle shooting
  • FPV camera
  • NDAA compliance

In the Box

  • IF800 Tomcat
  • 4 Propellers
  • 2 Spare Propellers
  • Smart Charger for IF800 Battery
  • IF800 Smart Battery Set (Includes: 2 IFT High Voltage smart batteries)
  • 1 Blue Herelink or Black Herelink Ground Controller
  • 1 Rugged Transport Case

Specifications

Performance

Max Ascent Speed 5 m/s 16 ft/s
Max Descent Speed 3 m/s 10 ft/s
Max Air Speed 25 m/s 56 mph
Max Wind Resistance 10 m/s, 12 m/s gusts 19 knots, 23 knot gusts
Max Tilt Angle 30°
Max Angular Velocity Tilt: 300°/s, Yaw: 120°/s
Operating Temperature -10°C ~ 40°C 14°F ~ 104°F
Operating Humidity 10% ~ 95%
Service Ceiling (with given payload) 4.3 km (14,100 ft) w/ 1.3kg, 2.8 km (9,200 ft) w/ 3.0 kg



Physical Features

Diagonal Size (propeller center to center) 935 mm 36.8 inches
Unfolded Size (flight ready, WxLxH) 135 x 116 x 45 cm 53.1 x 45.6 x 17.7 inches
Folded Size (stow, WxLxH) 38 x 48 x 19 cm 18.9 x 15.0 x 7.5 inches
Empty Weight (w/o batteries) 3.5 kg 7.7 lbs
Weight w/ Batteries 7.7 kg 16.9 lbs
Max Gross Takeoff Weight 10.7 kg 23.5 lbs
Max Payload Capacity 3.0 kg 6.6 lbs
Transport Case Size (WxLxH) 52.8 x 80.7 x 31.7 cm 20.8 x 31.8 x 12.5 inches
Transport Case Weight (w/ aircraft & GCS) 18 kg 40 lbs


Flight Stack

Flight Controller CubePilot Cube Blue H7
GNSS / Compass CubePilot Here4 Blue (2x)
Payload Power Rails 5v, 12v, 18v
Payload Interface IFT Universal Payload Interface V3
Operating Software Copter by Ardupilot


Flight Modes

Position Hold Automatically holds altitude and position, manually change position
Loiter Holds altitude and position, precision manual movements using GPS
Auto Executes pre-defined mission
RTL Auto returns to takeoff location and lands
Land Auto land while maintaining horizontal position
Altitude Hold Holds altitude only, failsafe mode if GPS signal lost
