Description

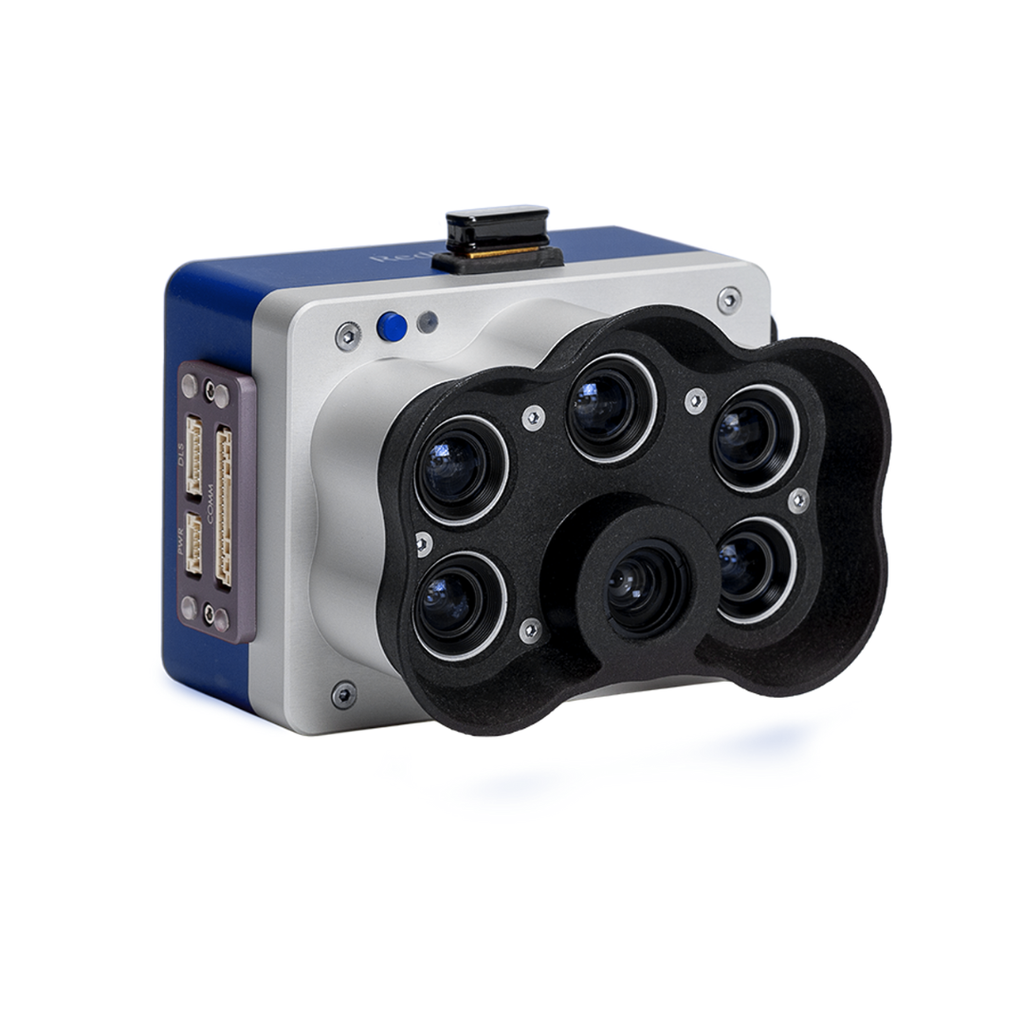

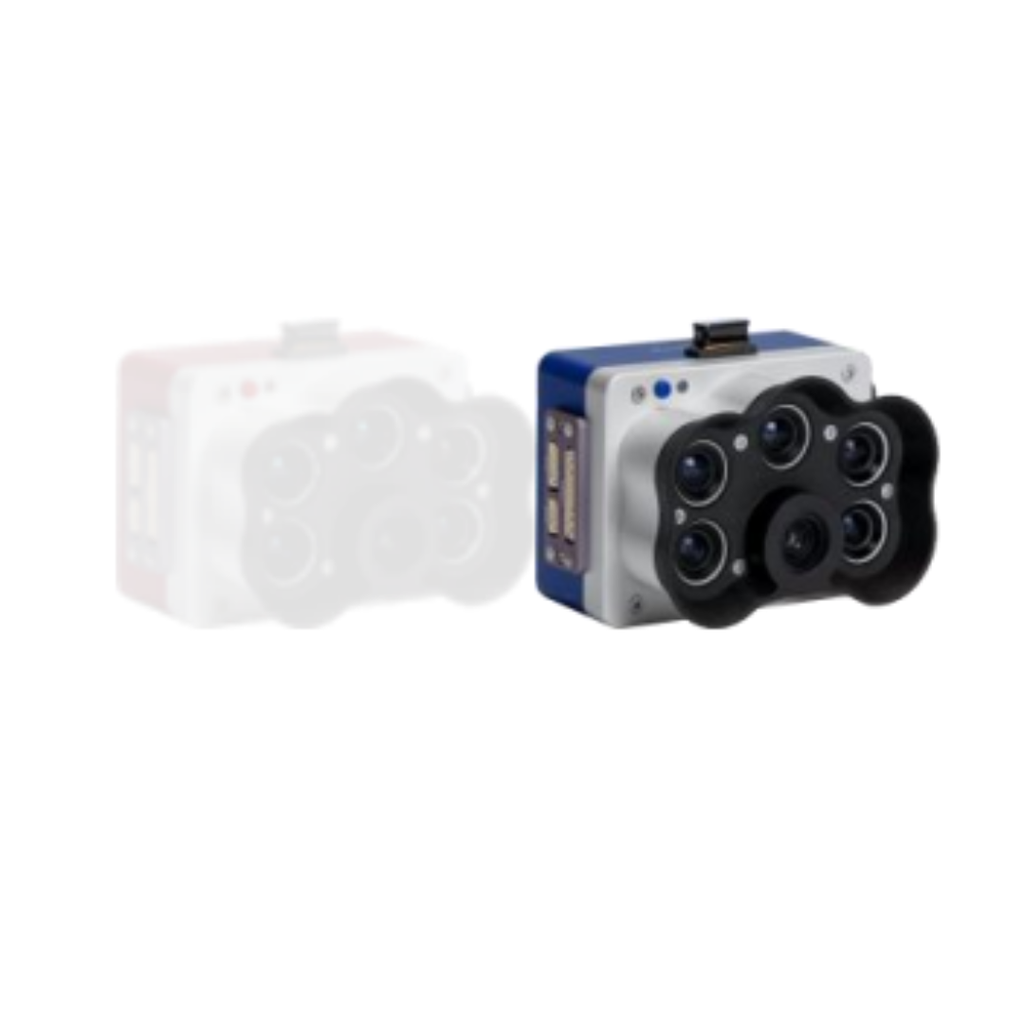

MicaSense RedEdge-P Blue Upgrade to Dual Camera Kit OEM
With a high-resolution panchromatic imager, RedEdge-Pblue enables higher resolution RGB and multispectral output: resolution of 2 cm per pixel / 0.78 inches per pixel when flying at 60 m / 200 feet. With sharper images, you can spot issues earlier and make more reliable management decisions in a variety of use cases.
KEY FEATURES
SYNCHRONIZED SHOOTING BETWEEN HIGH-RESOLUTION RGB IMAGES AND MULTISPECTRAL DATA.
Micasense RedEdge-Pblue allows simultaneous capture of up to six bands, enabling multiple high-resolution outputs such as RGB, crop vigor indices and composites (NDVI, NDRE, CIR) and high-resolution panchromatic.
The Operational Land Imager Band 1 or coastal blue (0.433-0.453 μm) is useful for imaging shallow water and for tracking fine atmospheric particles such as dust and smoke. Band 1 reflects blue and purple, where light is diffused by dust, smoke and water particles in the air. Collecting data with sufficient sensitivity to this spectrum is difficult. Because water absorbs and scatters light, oceans and lakes tend to appear dark or lacking in detail in satellite imagery.
Surveys over water for chlorophyll efficiency examination, vegetation analysis and identification of algae or floating, submerged and emergent plants.
The MicaSense Altum-PT captures synchronized multispectral, thermal, and panchromatic data for pixel-aligned outputs at incredibly high resolutions. The capture of these bands happens simultaneously, eliminating the need for data alignment in post-processing.
Specifications
| Specification | Details |
|---|---|
| Weight | 745 g / 26.2 oz (two sensors, mounting hardware, DLS2, and cable) |
| Dimensions | 13.2 cm × 8.8 cm × 9.67 cm (5.1 in × 3.1 in × 3.5 in) |
| RGB Sensor Resolution | 5.1 MP global shutter (2464 × 2056 pixels) |
| Multispectral Sensor Resolution | 1.6 MP per band (1456 × 1088 pixels), 7.7 cm per pixel at 120 m altitude |
| Ground Sample Distance | 7.7 cm/pixel multispectral; 3.98 cm/pixel panchromatic at 120 m / ~400 ft AGL |
| Field of View (FOV) | 50° HFOV × 38° VFOV (multispectral), 44° HFOV × 38° VFOV (panchromatic) |
| Capture Rate | Up to 3 raw DNG images per second |
| Storage Medium | High-speed CFexpress card |
| Interfaces | Frame signals, Host virtual button, USB 2.0 (WiFi), Serial, 10/100/1000 Ethernet |
| Power Requirements | 7.0 V – 25.2 V input; 11 W standby, 14 W average, 20 W peak |
| Environmental Protection | IP4X dust ingress rating |
| Spectral Bands Available | Select 10 out of 15 bands including: Coastal Blue (444 nm), Blue (475 nm), Green (531, 550, 560 nm), Yellow (570 nm), Red (650, 668, 678 nm), Red Edge (705, 717, 740 nm), Near-Infrared (754, 842 nm) |
