Description

*IN STOCK, SHIPS IN 1 DAY

Plant Intelligence for Targeted Action

Farm to Figures

Gain Immediate Insights into Plant Health

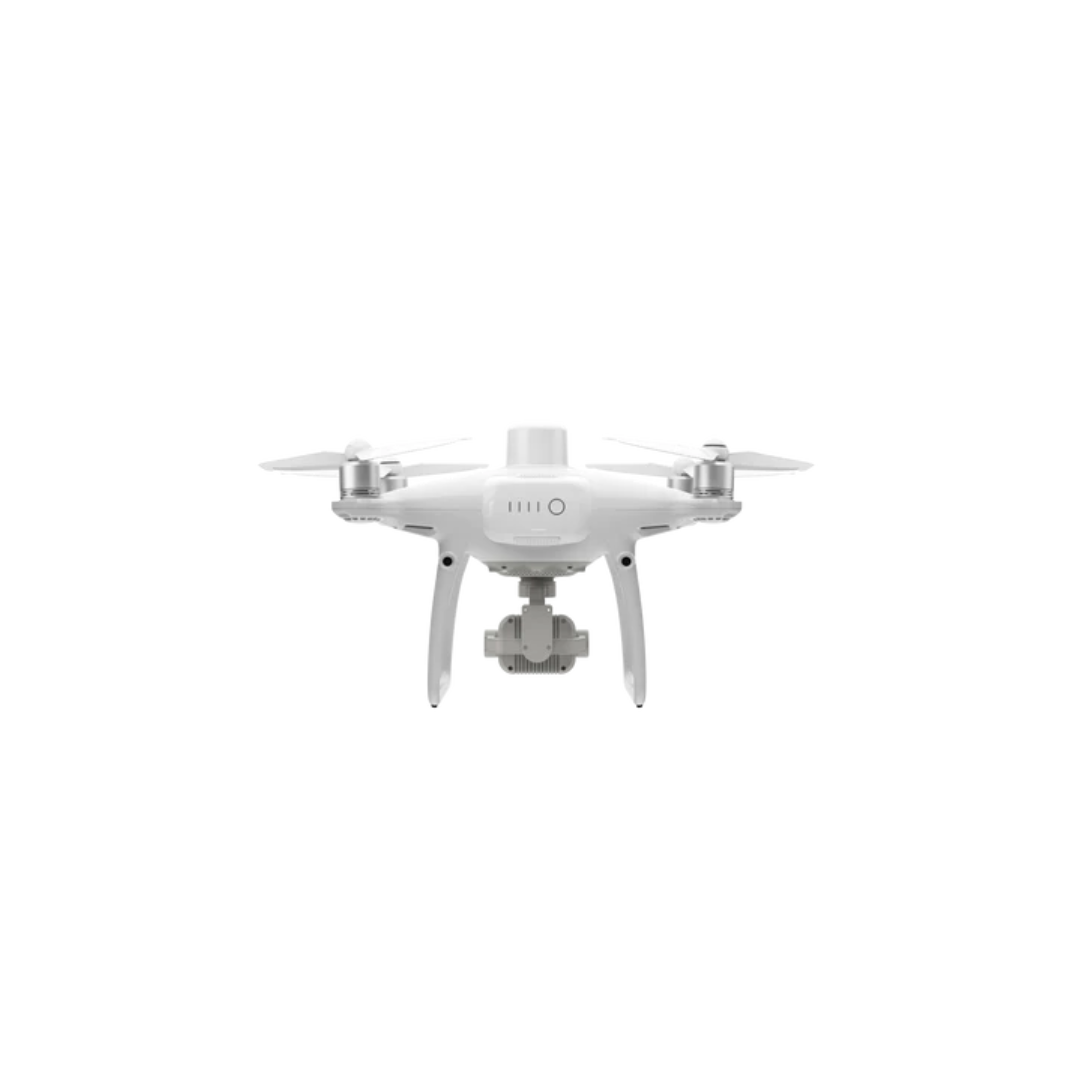

The P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km1 transmission range with the OcuSync system.



See Beneath the Surface

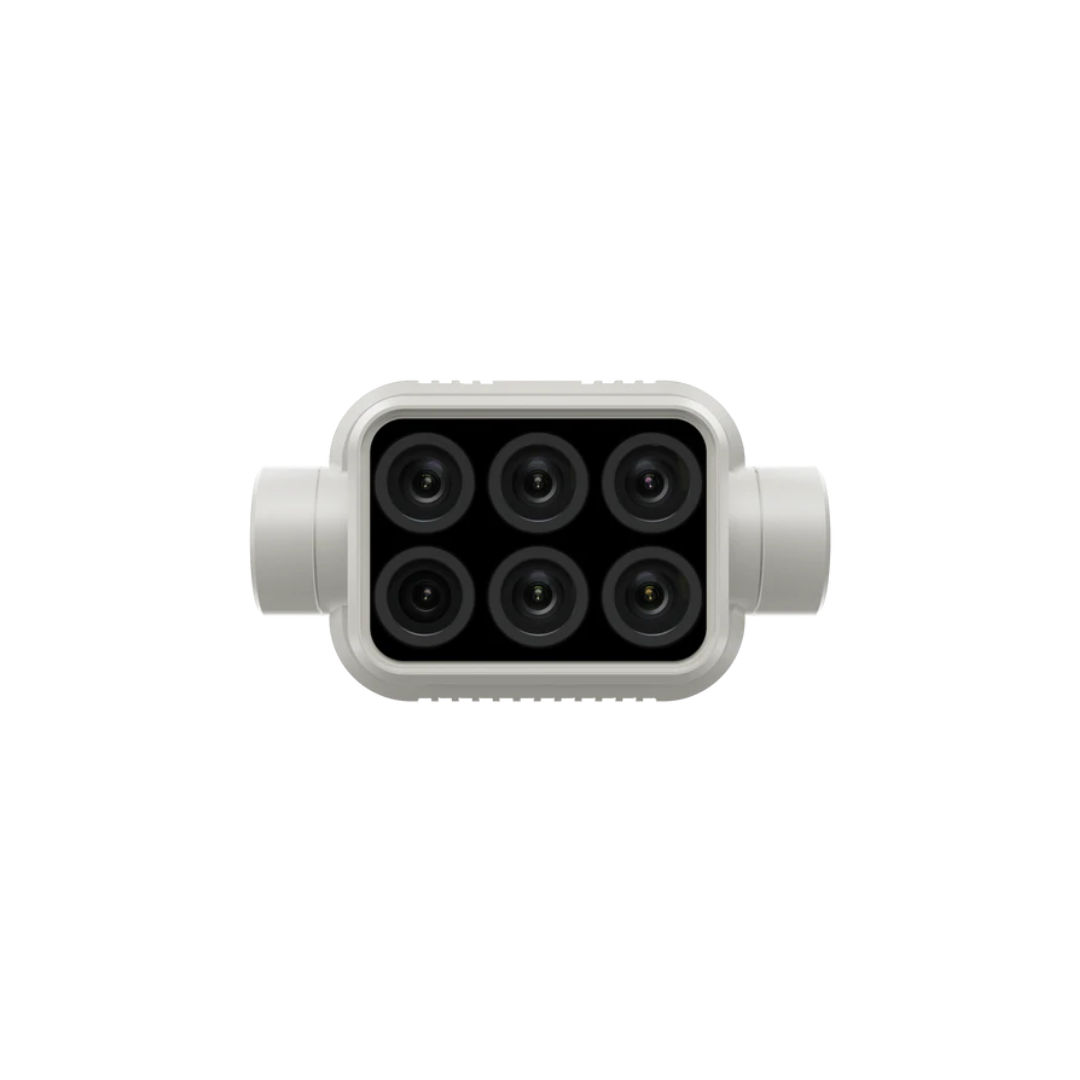

Agriculture imagery collection is now simpler and more efficient than ever before with a built-in stabilized imaging system that collects comprehensive data sets right out of the box. Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal.



Integrated Spectral Sunlight Sensor for Accurate Results

An integrated spectral sunlight sensor on top of the drone captures solar irradiance, which maximizes accuracy and consistency of data collection through different times of day. When combined with post-processed data, this information helps to obtain the most accurate NDVI results.



Meaningful Data at Your Disposal

View Both RGB and NDVI Feeds

Simply having aerial imagery is not enough for ag professionals who want to know more. Switch between a preliminary Normalized Difference Vegetation Index (NDVI) analysis and the live RGB feed to immediately visualize where attention is needed, so targeted treatment decisions can be made quickly.



Centimeter-level Precision

Get real-time, accurate positioning data on images captured by all six cameras with DJI’s TimeSync system, providing centimeter-level accurate measurements. The TimeSync system continually aligns the flight controller, RGB and NB cameras, and RTK module, fixing the positioning data to the center of the CMOS and ensuring each photo uses the most accurate metadata. All cameras go through a rigorous calibration process where radial and tangential lens distortions are measured. The distortion parameters gathered are saved into each image’s metadata, letting post-processing software adjust uniquely for every user.



D-RTK 2 Mobile Station and NTRIP Compatibility

Enhance the accuracy of RTK positioning without internet connection by connecting the P4 Multispectral to the D-RTK 2 High Precision GNSS Mobile Station and NTRIP (Network Transport of RTCM via Internet Protocol)2, or store the satellite observation data to be used for Post Processed Kinematics (PPK).

The Beginning of Intelligent Agriculture Missions

Plan Flights

Plan flights, execute automated missions, and manage flight data using GS PRO – DJI’s leading flight planning iOS app.

Capture Data

Collect multispectral images efficiently across a large area using the P4 Multispectral and gain an overview of problem areas.

Analyze Data

Easily access and process aerial data by applying plant-specific metrics and parameters to acquire the desired results on plant health.



Act on Data

Implement targeted treatments on areas that need attention based on accurate drone data.



APPLICATIONS

PRECISION AGRICULTURE

Multispectral imagery can be helpful to agriculture professionals throughout all growing seasons by collecting information invisible to the naked eye across the electromagnetic spectrum. With access to this data, farmers can make intelligent, informed decisions on crop treatment to lower costs, maximize yields and save on resources.

P4 Multispectral Dr Drone Canada Precision Agriculture

ENVIRONMENTAL MONITORING & INSPECTION

Routine maintenance and inspections with plants can be conducted more efficiently with the P4 Multispectral. Users can leverage actionable multispectral insights to map shorelines, measure biomass, monitor forest health or manage riparian vegetation while protecting ecosystems and habitats.

P4 Multispectral Dr Drone Canada Environmental Monitoring

Specifications

Aircraft

Takeoff Weight

  • 1487 g

Diagonal Distance (Propellers Excluded)

  • 350 mm

Max Service Ceiling Above Sea Level

  • 19685 ft (6000 m)

Max Ascent Speed

  • 6 m/s (automatic flight); 5 m/s (manual control)

Max Descent Speed

  • 3 m/s

Max Speed

  • 31 mph (50 kph) (P-mode); 36 mph (58 kph) (A-mode)

Max Flight Time

  • Approx. 27 minutes

Operating Temperature

  • 0° to 40° C (32° to 104° F)

Operating Frequency

  • 2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
  • 5.725 GHz to 5.850 GHz (Other countries/regions)[1]

Transmission Power (EIRP)

  • 2.4 GHz: < 20 dBm (CE / MIC / KCC)
  • 5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Hover Accuracy Range

  • RTK enabled and functioning properly:
  • Vertical: ± 0.1 m; Horizontal: ± 0.1 m
    RTK disabled:
  • Vertical: ± 0.1 m (with vision positioning); ± 0.5 m (with GNSS positioning)
  • Horizontal: ± 0.3 m (with vision positioning); ± 1.5 m (with GNSS positioning)

Image Position Compensation

  • The relative positions of the centers of the six cameras’ CMOS and the phase center of the onboard D-RTK antenna have been calibrated and are recorded in the EXIF data of each image.



Mapping Functions

Ground Sample Distance (GSD)

  • (H/18.9) cm/pixel, H indicates the aircraft altitude relative to the area mapped (unit: m)

Rate of Data Collection

  • Max operating area of approx. 0.63 km2 for a single flight at an altitude of 180 m, i.e., GSD is approx. 9.52 cm/pixel, with a forward overlap rate of 80% and a side overlap ratio of 60%, during a flight that drains the battery from 100% to 30%.



GNSS

Single-Frequency High-Sensitivity GNSS

  • GPS + BeiDou + Galileo[2] (Asia); GPS + GLONASS + Galileo[2] (other regions)

Multi-Frequency Multi-System High-Precision RTK GNSS

  • Frequency Used
  • GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo[2]: E1/E5
  • First-Fixed Time: < 50 s
  • Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS). 1 ppm indicates error with a 1 mm increase over 1 km of movement.
  • Velocity Accuracy: 0.03 m/s



Gimbal

Controllable Range

  • Tilt: -90° to +30°



Vision System

Velocity Range

  • ≤ 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting

Altitude Range

  • 0 - 33 ft (0 - 10 m)

Operating Range

  • 0 - 33 ft (0 - 10 m)

Obstacle Sensory Range

  • 2 - 98 ft (0.7 - 30 m)

Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)



Camera

Sensors

  • Six 1/2.9” CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging.
    Each Sensor: Effective pixels 2.08 MP (2.12 MP in total)

Filters

  • Blue (B): 450 nm ± 16 nm; Green (G): 560 nm ± 16 nm; Red (R): 650 nm ± 16 nm;
  • Red edge (RE): 730 nm ± 16 nm; Near-infrared (NIR): 840 nm ± 26 nm

Lenses

  • FOV (Field of View): 62.7°
  • Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞
  • Aperture: f/2.2

RGB Sensor ISO Range

  • 200 - 800

Monochrome Sensor Gain

  • 1 - 8x

Electronic Global Shutter

  • 1/100 - 1/20000 s (visible light imaging); 1/100 - 1/10000 s (multispectral imaging)

Max Image Size

  • 1600×1300 (4:3.25)

Photo Format

  • JPEG (visible light imaging) + TIFF (multispectral imaging)

Supported File Systems

  • FAT32 (£ 32 GB); exFAT (> 32 GB)

Supported SD Cards

  • microSD with a minimum write speed of 15 MB/s. Max Capacity: 128 GB. Class 10 or UHS-1 rating required

Operating Temperature

  • 0° to 40° C (32° to 104° F)

Remote Controller

Operating Frequency

  • 2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
  • 5.725 GHz to 5.850 GHz (Other countries/regions)[1]

Transmission Power (EIRP)

  • 2.4 GHz: < 20 dBm (CE / MIC / KCC)
  • 5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Max Transmission Distance

  • FCC / NCC: 4.3 mi (7 km)
  • CE / MIC / KCC / SRRC: 3.1 mi (5 km)(Unobstructed, free of interference)

Built-in Battery

  • 6000 mAh LiPo 2S

Operating Current / Voltage

  • 1.2 A @ 7.4 V

Mobile Device Holder

  • Tablets and smartphones

Operating Temperature

  • 0° to 40° C (32° to 104° F)



Intelligent Flight Battery (PH4-5870mAh-15.2V)

Capacity

  • 5870 mAh

Voltage

  • 15.2 V

Battery Type

  • LiPo 4S

Energy

  • 89.2 Wh

Net Weight

  • 468 g

Operating Temperature

  • -10° to 40° C (14° to 104° F)

Charging Temperature

  • 5° to 40° C (41° to 104° F)

Max Charging Power

  • 160 W



Intelligent Flight Battery Charging Hub (PHANTOM 4 CHARGING HUB)

Voltage

  • 17.5 V

Operating Temperature

  • 5° to 40° C (41° to 104° F)



AC Power Adapter (PH4C160)

Voltage

  • 17.4 V

Rated Power

  • 160 W



NOTE

  • [1] To comply with local laws and regulations, this frequency is not available in some countries or regions.
    [2] Support for Galileo is coming soon.
