Description

Pre-Order Now

Note: This item is currently on pre-order. Should you place your pre-order now, you will be among the first to receive the item once stock arrives. Do keep in mind, although stock is guaranteed to arrive, we do not yet have an ETA. Once we have an ETA you will be updated.

SDR Transmission, Strong and Stable

Built around Software-Defined Radio technology, DJI SDR Transmission utilizes both SDR and Wi-Fi video transmission modes. SDR technology takes video transmission performance to a whole new level, offering enhanced stability, interference resistance, and penetration capabilities. For instances that require temporary monitoring, DJI SDR Transmission also accommodates Wi-Fi transmission to provide teams with increased flexibility.

SDR vs. Wi-Fi Transmission Performance [1]

  • Transmission Distance Increased by 650%
  • Transmission Bitrate Increased by 67%
  • Transmission Latency Improved by 30%

Kilometer-Level Transmission, Robust Penetration

DJI SDR Transmission can reach up to 3 km/10,000 ft, [1] accommodating wide-area, dynamic filming scenarios. Coupled with superior penetration capabilities, it meets on-site live feed monitoring demands in various complex scenarios.

20Mbps High Bitrate, 1080p FHD Image Quality

DJI SDR Transmission supports 1080p/60fps live feeds, with a high bitrate of up to 20 Mbps, [2] ensuring smooth monitoring and collaboration.

Seamless Auto Frequency Hopping

DJI SDR Transmission supports seamless auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. In case of interference, it can automatically switch to the optimal channel, effortlessly tackling complex environmental challenges.

* 5.8 GHz or DFS frequency bands are prohibited in some countries/regions. Check local laws and regulations for more information.

Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.

Compact, Lightweight, Portable

With a lightweight design and foldable antennas for easy storage, a single transmitter or receiver weighs approximately 145 g. [5] This not only ensures portability but also supports various mounting methods, satisfying a wide range of on-scene demands.

Innovative USB-C Port, Diverse Monitoring Methods

DJI SDR Transmission supports multiple monitoring methods and can output three SDR signals and two Wi-Fi signals simultaneously. The receiver can output to monitors via SDI/HDMI. Additionally, the transmitter allows for direct connection to smartphones or tablets over Wi-Fi, offering a cost-effective, dual-channel monitoring experience without the need for a receiver.

On top of this, DJI SDR Transmission also introduces a USB-C output monitoring method that combines stability with convenience. Users can use a USB-C cable to connect the receiver to a smartphone or tablet for smooth and stable monitoring.

Camera Sources Switching

When DJI SDR Transmission is connected to the DJI Ronin app in Broadcast mode, users can seamlessly switch between camera sources within the app, meeting the monitoring needs for different camera views.

Local Recording and Playback

The app supports local recording, and recorded content can be reviewed on the playback page.

Multiple Monitoring Options

The app supports mainstream monitoring assistance tools such as LUT, peaking, waveform, and false color, delivering a professional monitoring experience.

DJI SDR Transmission Transmitter Ports

  • USB-C Port
    • USB-C Power and Gimbal Communication Port
  • USB-C Port
  • 3.5mm Stereo Jack
  • HDMI Input Port
  • SDI Input Port

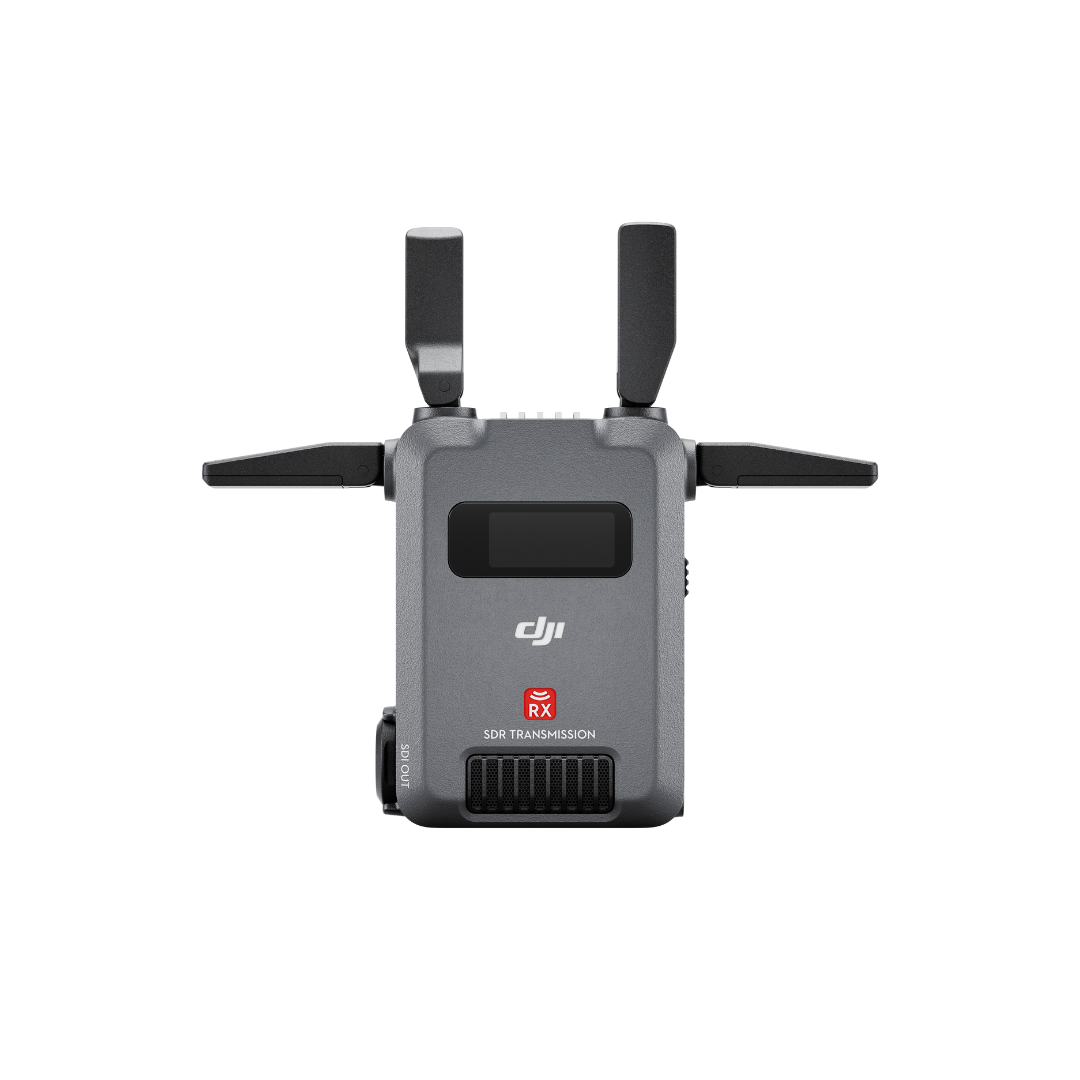

DJI SDR Transmission Receiver Ports

  • USB-C Port
    • USB-C Firmware Update and Video Output Port
  • USB-C Port
  • 3.5mm Stereo Jack
  • HDMI Output Port
  • SDI Output Port

Gimbal Power

Thanks to the integrated power supply design, when used with DJI RS 4 Pro, DJI RS 4, or DJI RS 3 Pro, [7] the transmitter can be mounted on the gimbal and powered directly by it, eliminating the need for a separate battery.

Alternative Power Supply Options

NP-F Power Supply

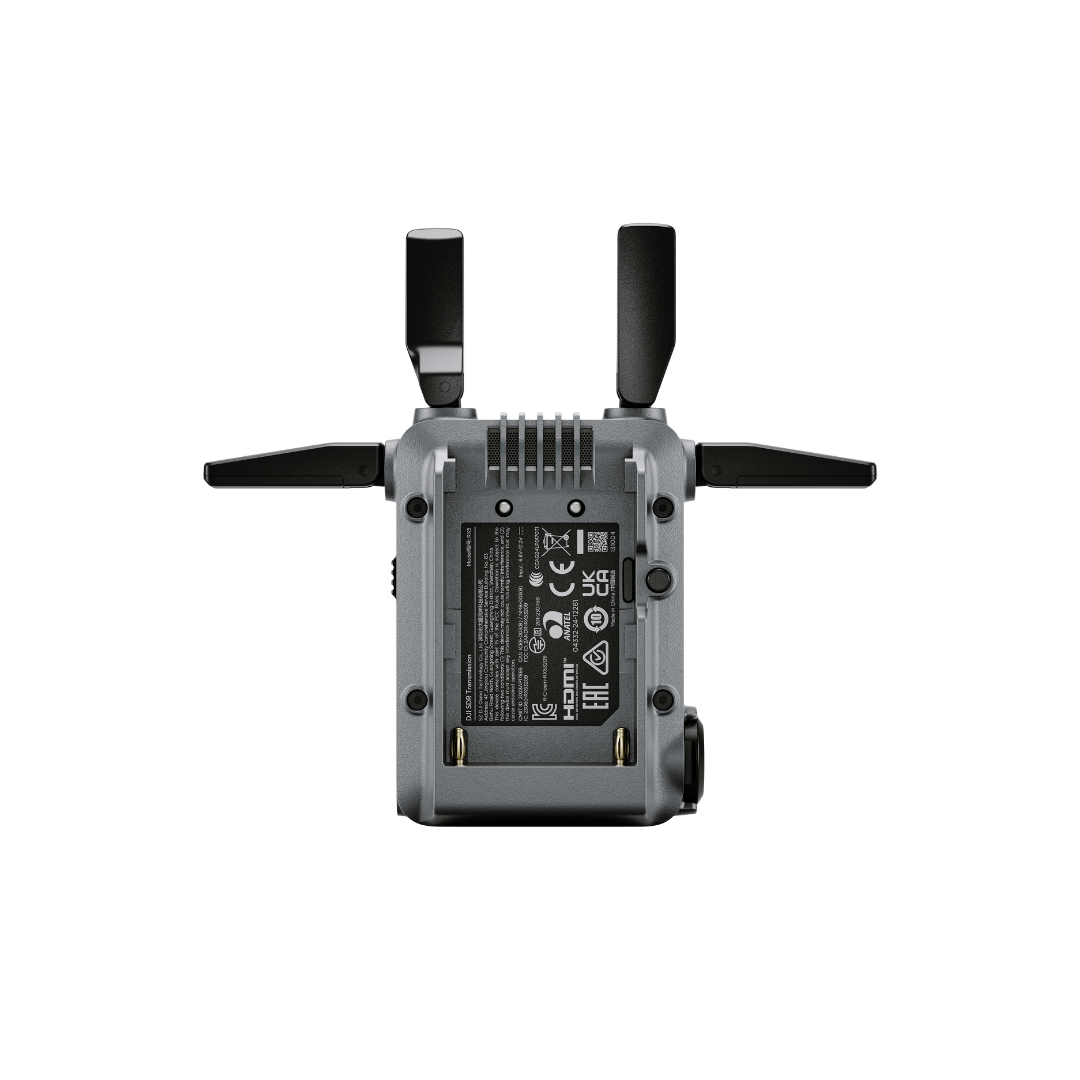

  • The transmitter and receiver both support industry-standard NP-F batteries, which provide a voltage ranging from 6.8 to 8.4 V.
  • USB-C Power Supply

Specifications

Transmitter

  • Weight

  • Approx. 145 g (including antennas)

  • Dimensions

  • 86.5×64×32 mm (L×W×H, excluding antennas)

  • Ports

  • SDI Input Port
    HDMI Input Port
    3.5mm Stereo Jack
    USB-C Firmware Update Port
    USB-C Power and Gimbal Communication Port

  • Operating Frequency

  • SDR Operating Frequency
    Non-DFS Frequency Band:
    2.4000-2.4835 GHz
    5.725-5.850 GHz
    DFS Frequency Band:
    5.470-5.725 GHz

    5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

    Wi-Fi Operating Frequency
    2.4000-2.4835 GHz
    5.150-5.250 GHz

  • Transmitter Power (EIRP)

  • SDR:
    2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (SRRC/CE/MIC)

    5.470-5.725 GHz:
    < 30 dBm (FCC)
    < 23 dBm (CE/MIC)

    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 14 dBm (CE)
    ＜30 dBm (SRRC)

    Wi-Fi:
    2.4000-2.4835 GHz:
    < 26 dBm (FCC)
    < 20 dBm (SRRC/CE/MIC)

    5.150-5.250 GHz:
    < 26 dBm (FCC)
    < 23 dBm (SRRC/CE/MIC)

  • Wi-Fi Protocol

  • 802.11b/a/g/n/ac/ax
    Supports 2×2 MIMO Wi-Fi

  • Max Bandwidth

  • SDR:
    20 MHz

    Wi-Fi:
    20 MHz

  • Max Bitrate

  • SDR:
    20 Mbps*

    Wi-Fi:
    8 Mbps

    * Measured in Control mode, with Broadcast mode turned off.

  • Power Consumption

  • 8.2 W

    Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

  • Power Supply

  • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
    USB-C Power Supply Type 2: 6.8-17.2 V DC
    NP-F Battery Power Supply Voltage: 6.8-8.4 V

  • Input Video Format

  • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
    1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
    720p: 50/59.94/60fps

  • Input Audio Format

  • SDI embedded, HDMI embedded

  • Video Transmission System

  • SDR + Wi-Fi

  • Video Transmission Latency

  • SDR:
    80 ms* (including camera and screen display latency)
    35 ms* (excluding camera and screen display latency)
    Wi-Fi:
    110 ms**

    * Measured when shooting 1080p/60fps video with Broadcast mode turned off.
    ** Measured when shooting 1080p/60fps video.

  • Video Coding Format

  • H.264

  • Max Transmission Distance

  • SDR:
    3 km (FCC)*
    2 km (CE/SRRC/MIC)*
    Wi-Fi:
    200 m

    * Measured in Control mode, with Broadcast mode turned off.

  • Operating Temperature

  • -10° to 40° C (14° to 104° F)

Receiver

  • Weight

  • Approx. 145 g (including antennas)

  • Dimensions

  • 86.5×64×32 mm (L×W×H, excluding antennas)

  • Ports

  • SDI Output Port
    HDMI Output Port
    3.5mm Stereo Jack
    USB-C Firmware Update and Video Output Port
    USB-C Power Port

  • Operating Frequency

  • SDR Operating Frequency
    Non-DFS Frequency Band:
    2.4000-2.4835 GHz
    5.725-5.850 GHz

    5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.

  • Transmitter Power (EIRP)

  • SDR:
    2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (SRRC/CE/MIC)

    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 14 dBm (CE)
    < 23 dBm (SRRC)

  • Max Bandwidth

  • 20 MHz

  • Max Bitrate

  • 20 Mbps

    Measured in Control mode, with Broadcast mode turned off.

  • Power Consumption

  • 8.3 W

    Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

  • Power Supply

  • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
    USB-C Power Supply Type 2: 6.8-17.2 V DC
    NP-F Battery Power Supply Voltage: 6.8-8.4V

  • Output Video Format

  • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
    1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
    720p: 50/59.94/60fps

  • Output Audio Format

  • PCM

  • Video Transmission System

  • SDR

  • Video Transmission Latency

  • 80 ms (including camera and screen display latency)
    35 ms (excluding camera and screen display latency)

    Measured when shooting 1080p/60fps video with Broadcast mode turned off.

  • Video Coding Format

  • H.264

  • Max Transmission Distance

  • 3 km (FCC)
    2 km (CE/SRRC/MIC)

    Measured in Control mode, with Broadcast mode turned off.

  • Operating Temperature

  • -10° to 40° C (14° to 104° F)
